Edited: August 11, 2026
Why do I need to turn Mirror on in Design Space when cutting iron-on or Infusible Ink materials?
Most iron-on and Infusible Ink material comes adhered to a heat-resistant liner that protects your design during the heat-transfer process. These materials are placed liner-side down for cutting so your machine can cut the design on the heat-transfer material but leave the liner intact. Because of this, the design needs to be mirrored so it appears correctly when transferred to your base material. This is especially important for designs that need to face a certain direction, like text.

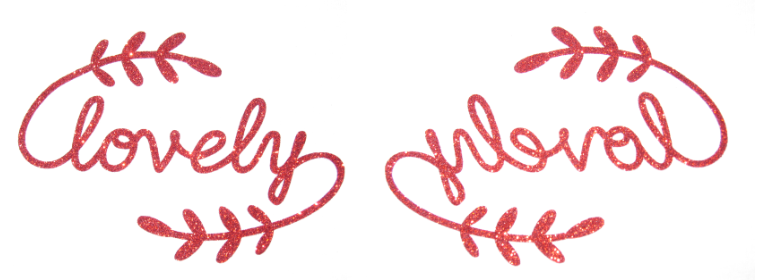

Left: The finished project when mirroring correctly.
Right: Finished project when forgetting to mirror.
How to mirror in Design Space
Select a platform below to view step-by-step instructions.
-
When you have finished customizing your design and you are ready to cut, click Make It to proceed to project preview.
-

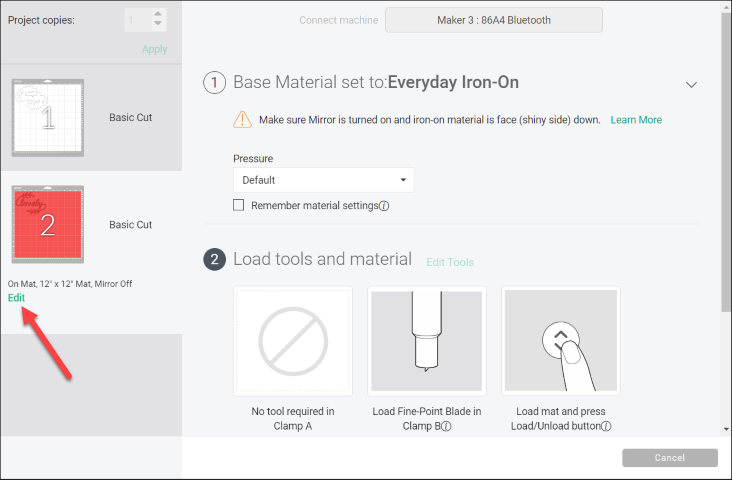

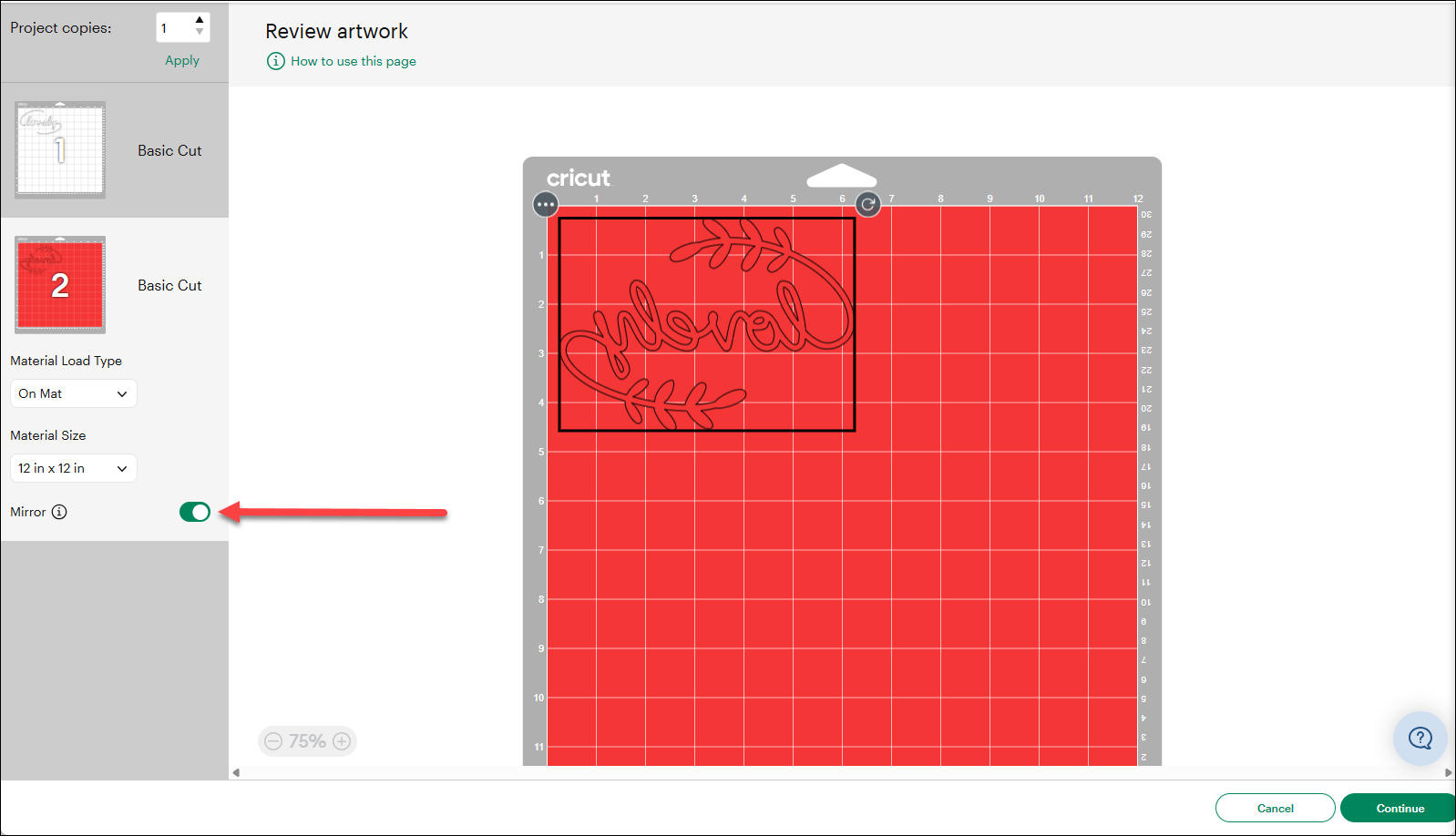

On the Prepare screen: For each material color intended for heat transfer, toggle Mirror on.
- Select Continue to complete your cut.

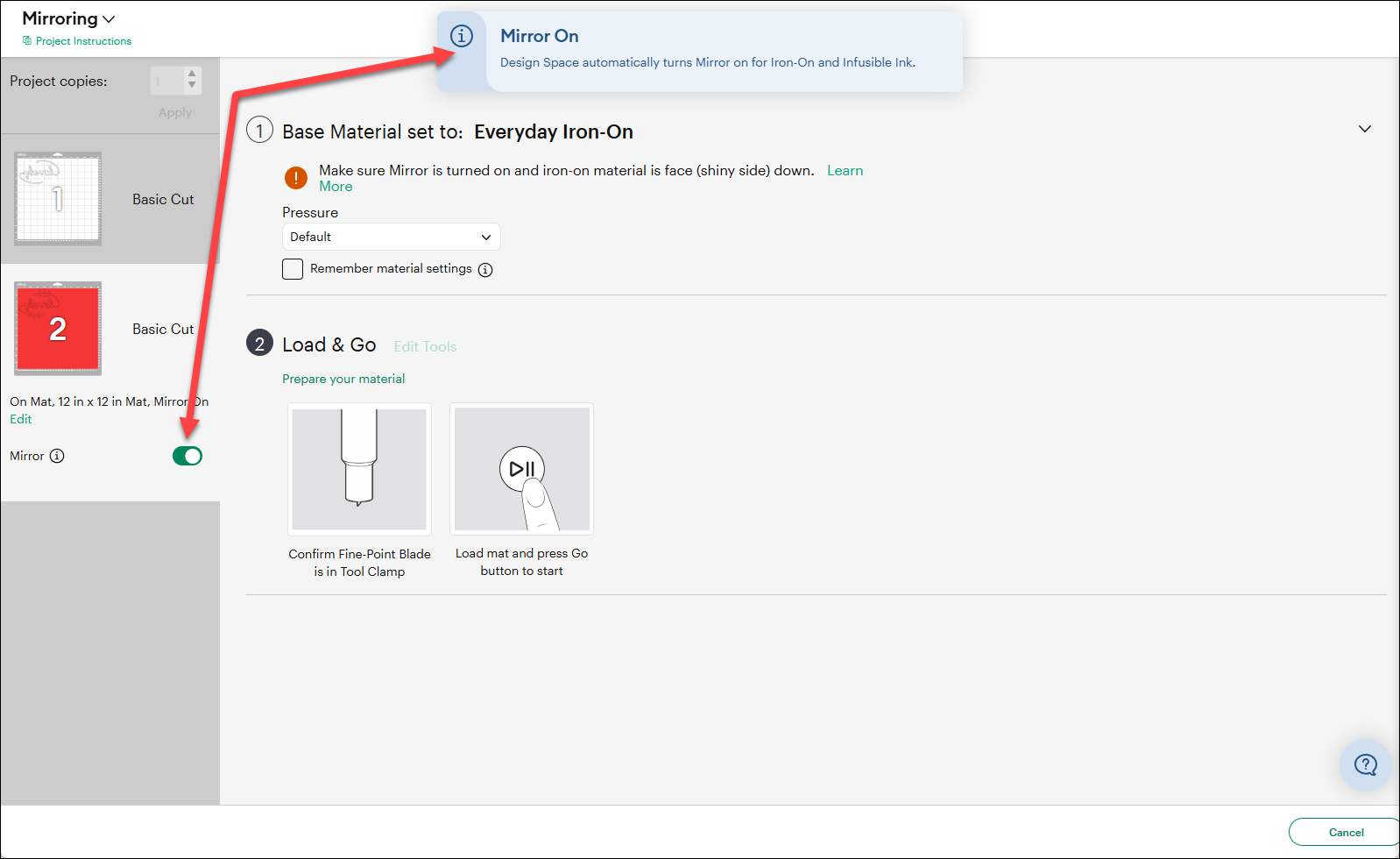

- If Mirror isn’t already turned on, Design Space will automatically mirror your design when you select an applicable iron-on or Infusible Ink material setting. A message will let you know that your design has been mirrored. If needed, you can easily adjust the Mirror toggle for each mat or material on this screen, too.
- You are ready to cut!
-

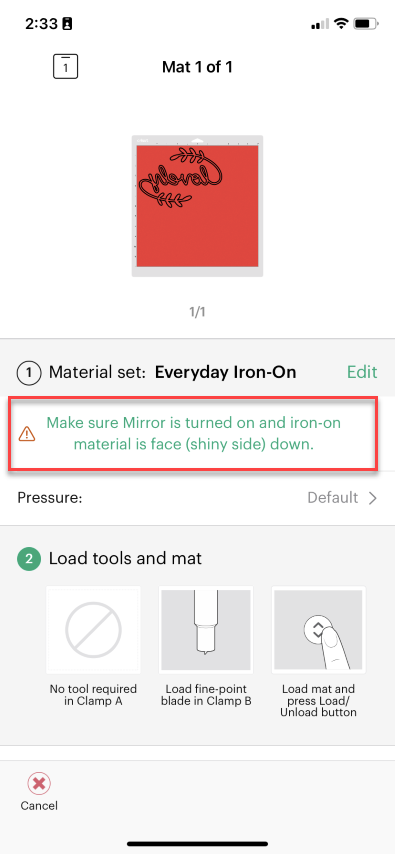

When you have finished customizing your design and you are ready to cut, select Make.
-

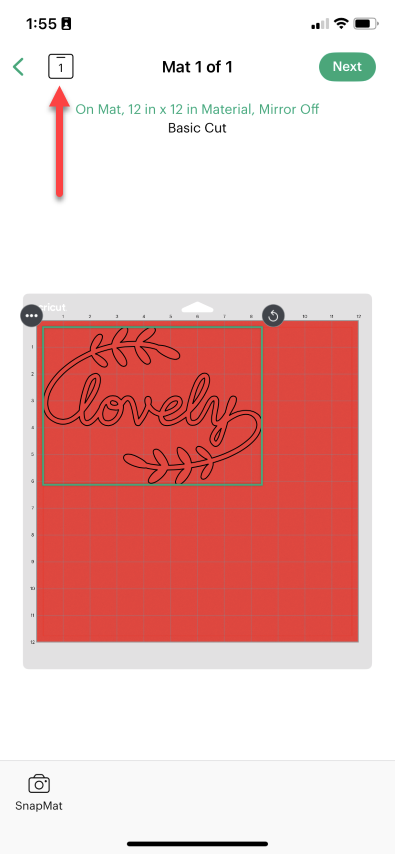

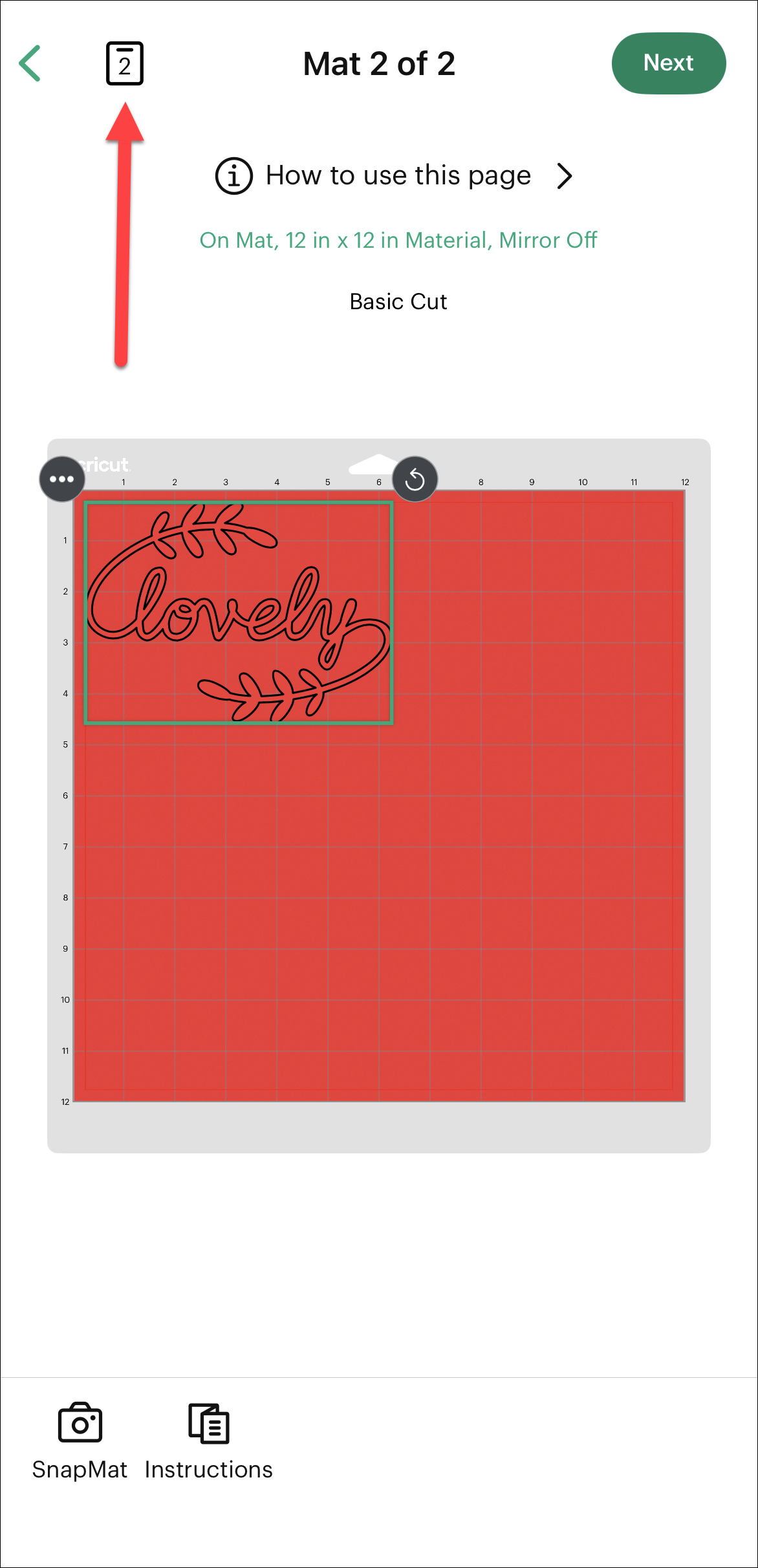

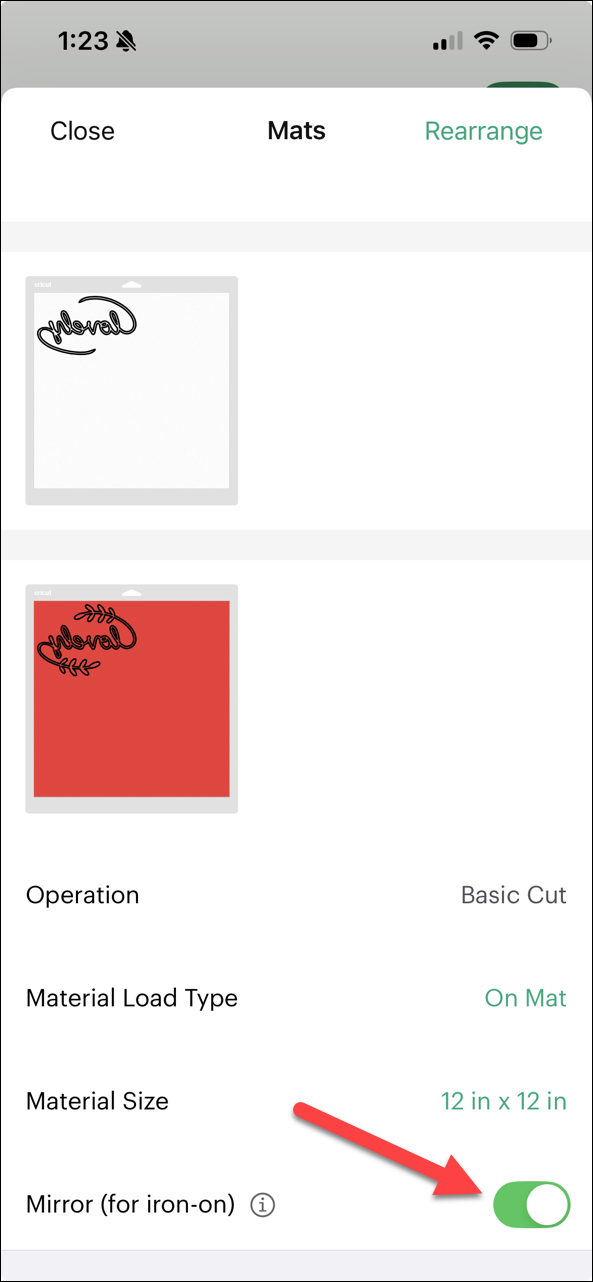

Tap the mat icon at the top of the screen to view settings for each mat or material color.
-

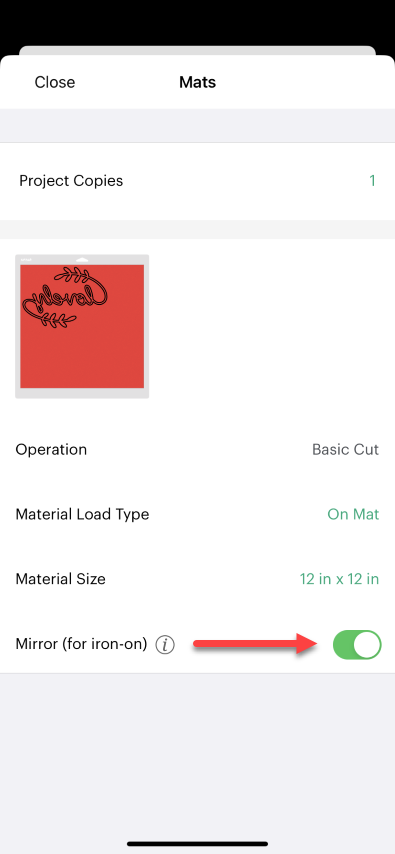

For each material color with design elements intended for heat transfer, toggle Mirror on.
- Tap Close in the upper left corner again to dismiss the list of mats. Then tap Next to continue.

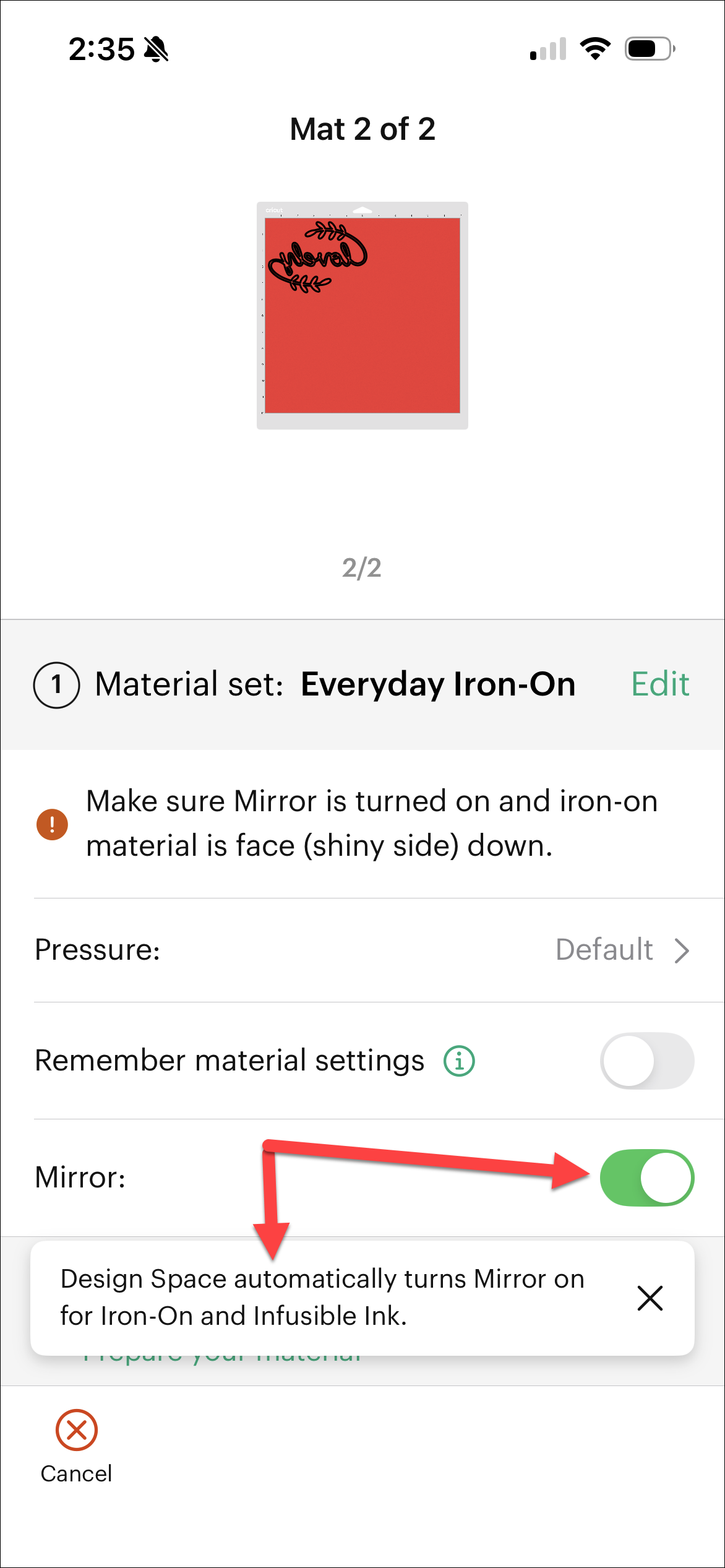

- If Mirror isn’t already turned on, Design Space will automatically mirror your design when you select an applicable iron-on or Infusible Ink material setting. A message will let you know that your design has been mirrored. If needed, you can easily adjust the Mirror toggle for each mat or material on this screen, too.
- You are ready to cut!

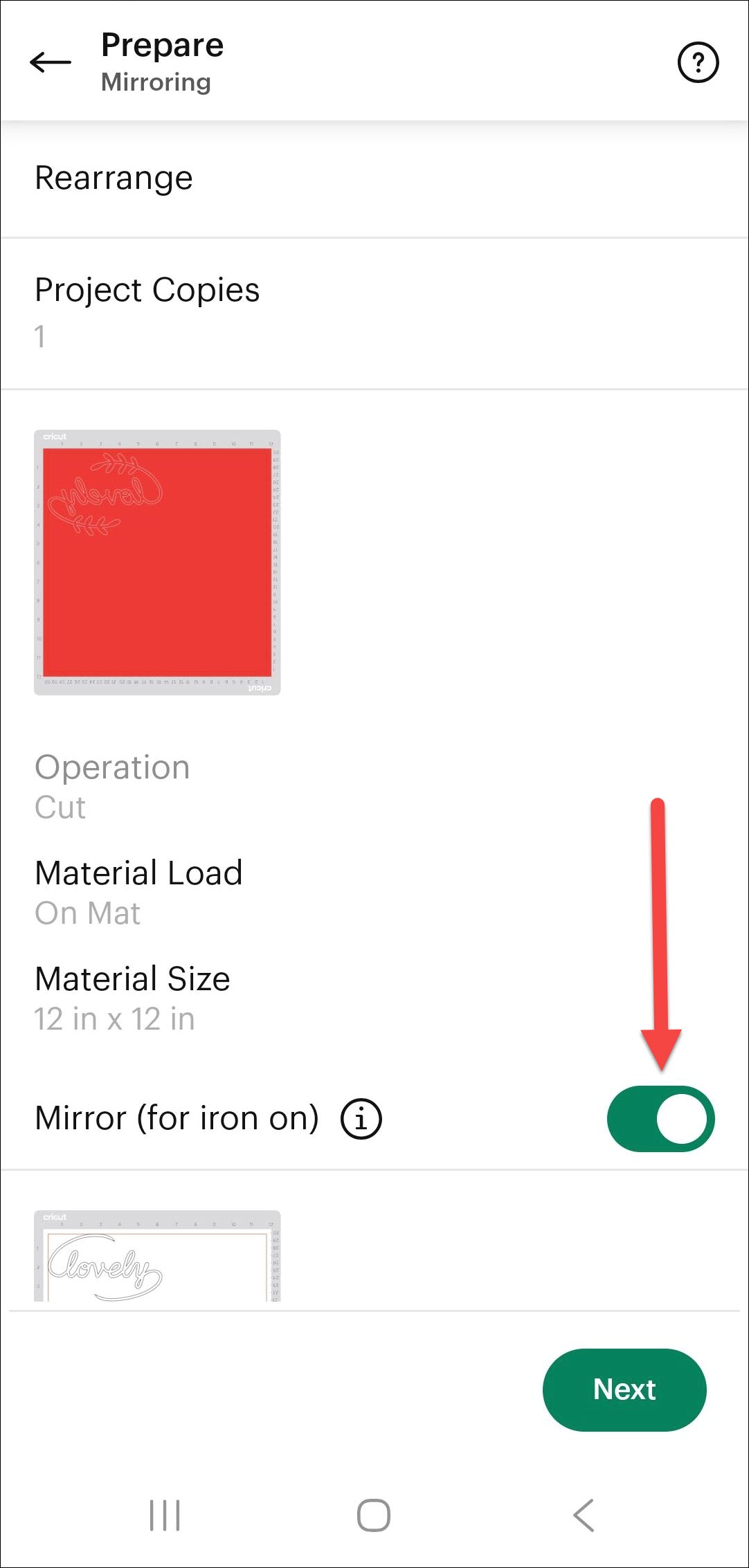

- When you have finished customizing your design and you are ready to cut, select Make.

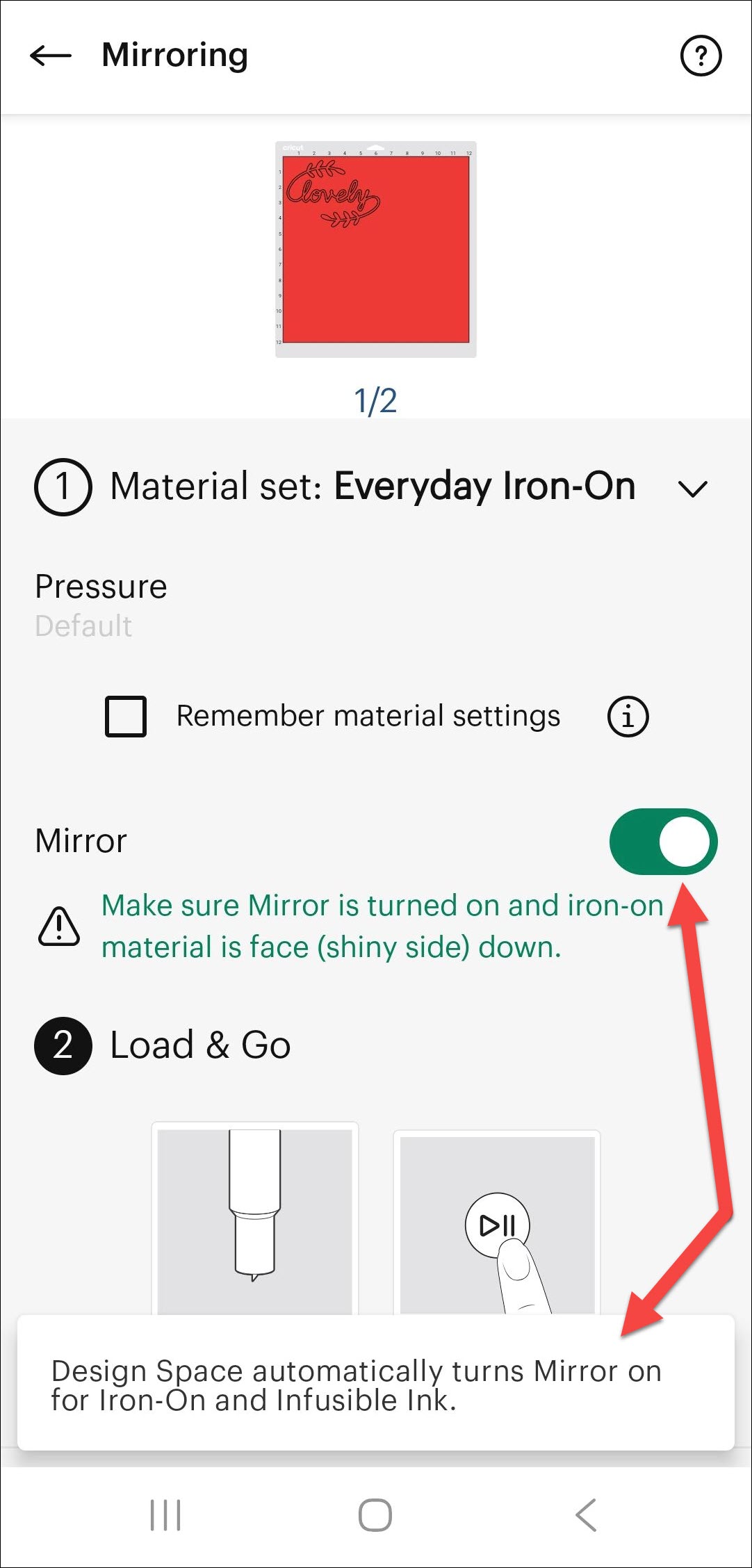

- For each material color with design elements intended for heat transfer, toggle Mirror on. Then, tap Next to continue.
- If Mirror isn’t already turned on, Design Space will automatically mirror your design when you select an applicable iron-on or Infusible Ink material setting. A message will let you know that your design has been mirrored. If needed, you can easily adjust the Mirror toggle for each mat or material on this screen, too.
- You are ready to cut!
Important: You must turn Mirror on for each mat individually. At this time, it is not possible to mirror multiple at once.
