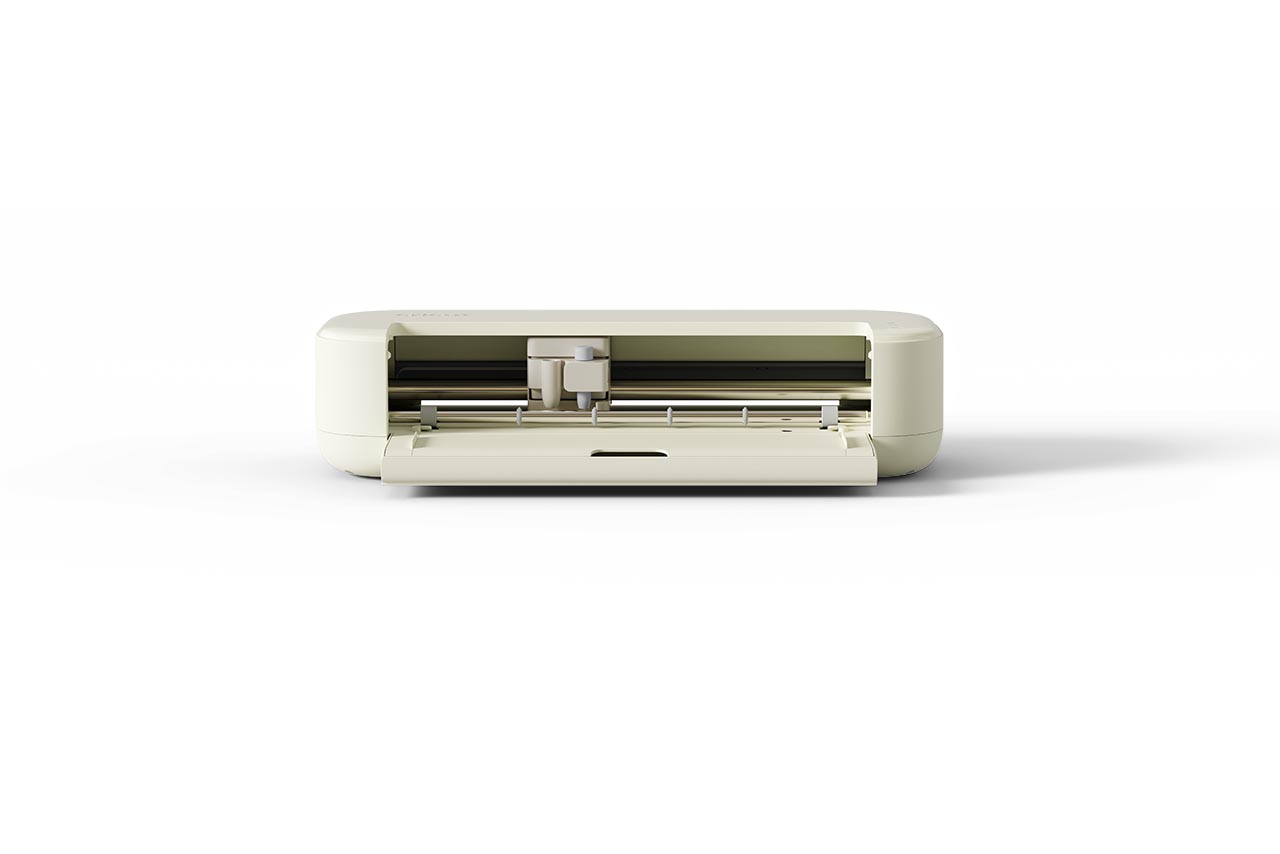

Cricut Explore 5: How to use the Scoring Tool

What you need | Design & Make

The Cricut Scoring Tool for Cricut Explore 5 works with the machine to press clean, deep impressions into your material so you get crisp, effortless folds every time! Explore the links above to learn how to score with Cricut Explore 5.

What you need

Design & Make

→ Design

1. Create your design in Design Space.

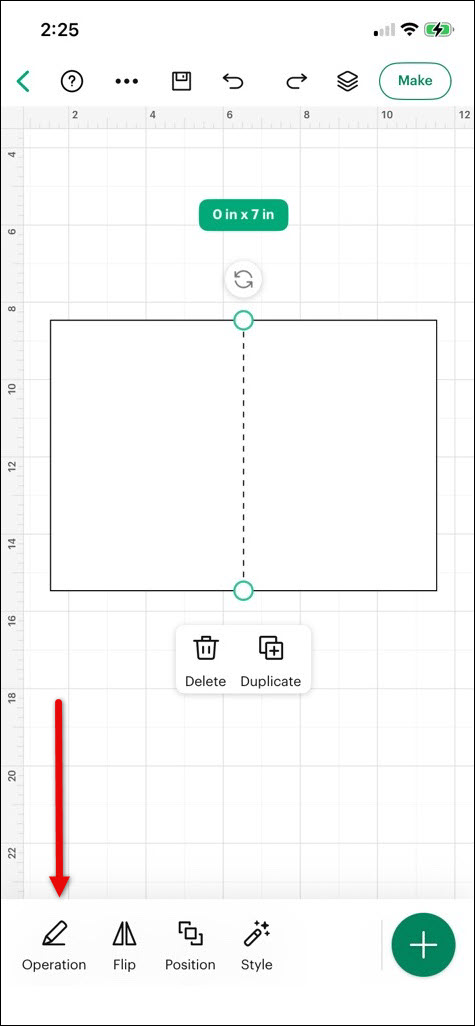

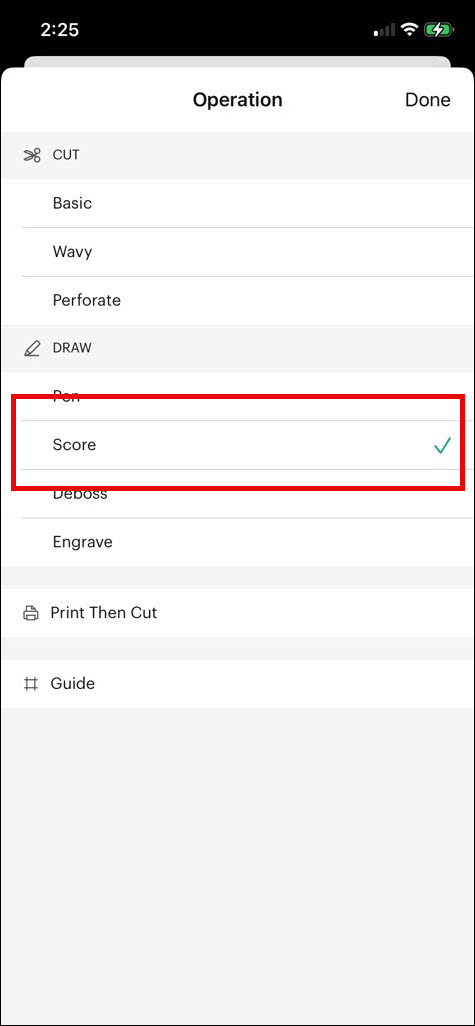

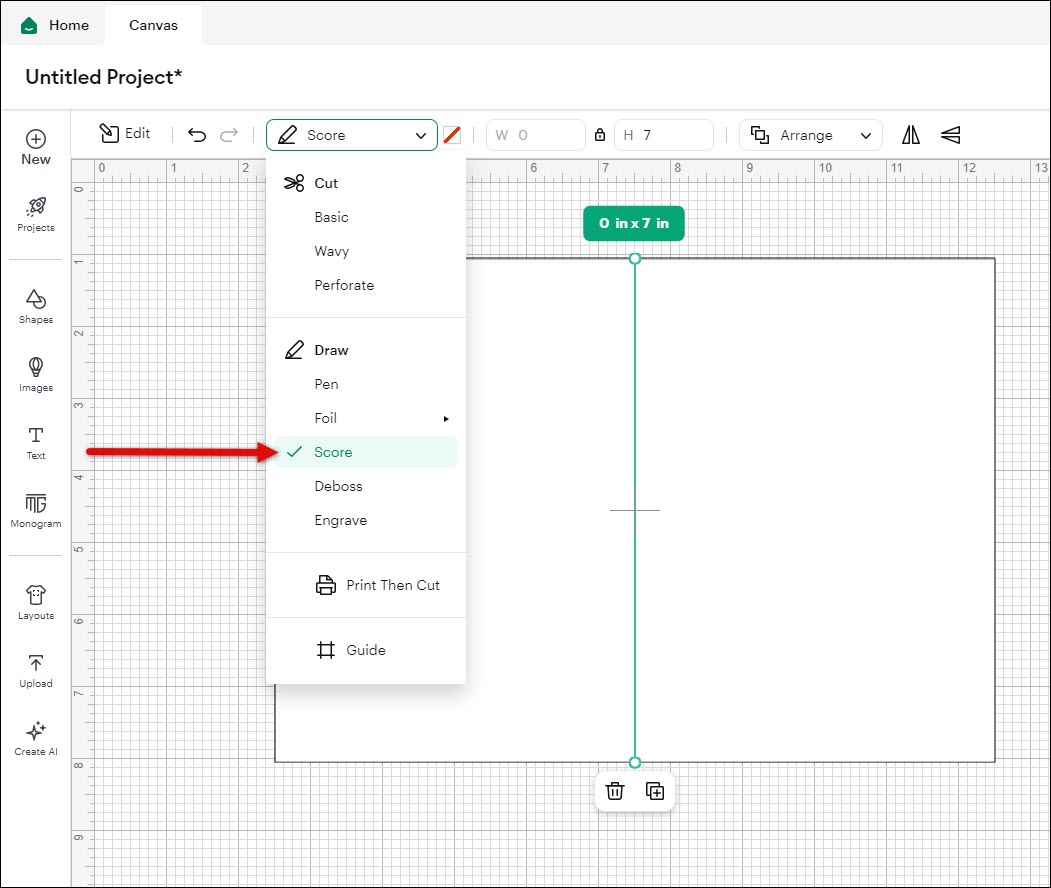

2. Operation tells your machine how to interact with your materials. When you want a line or other object to use the Scoring Tool, select the Operation menu and choose Score.

   Windows/Mac


   iOS/Android



Tip: The line from the Shapes menu is free and can easily be changed to a Score line for use in your projects.

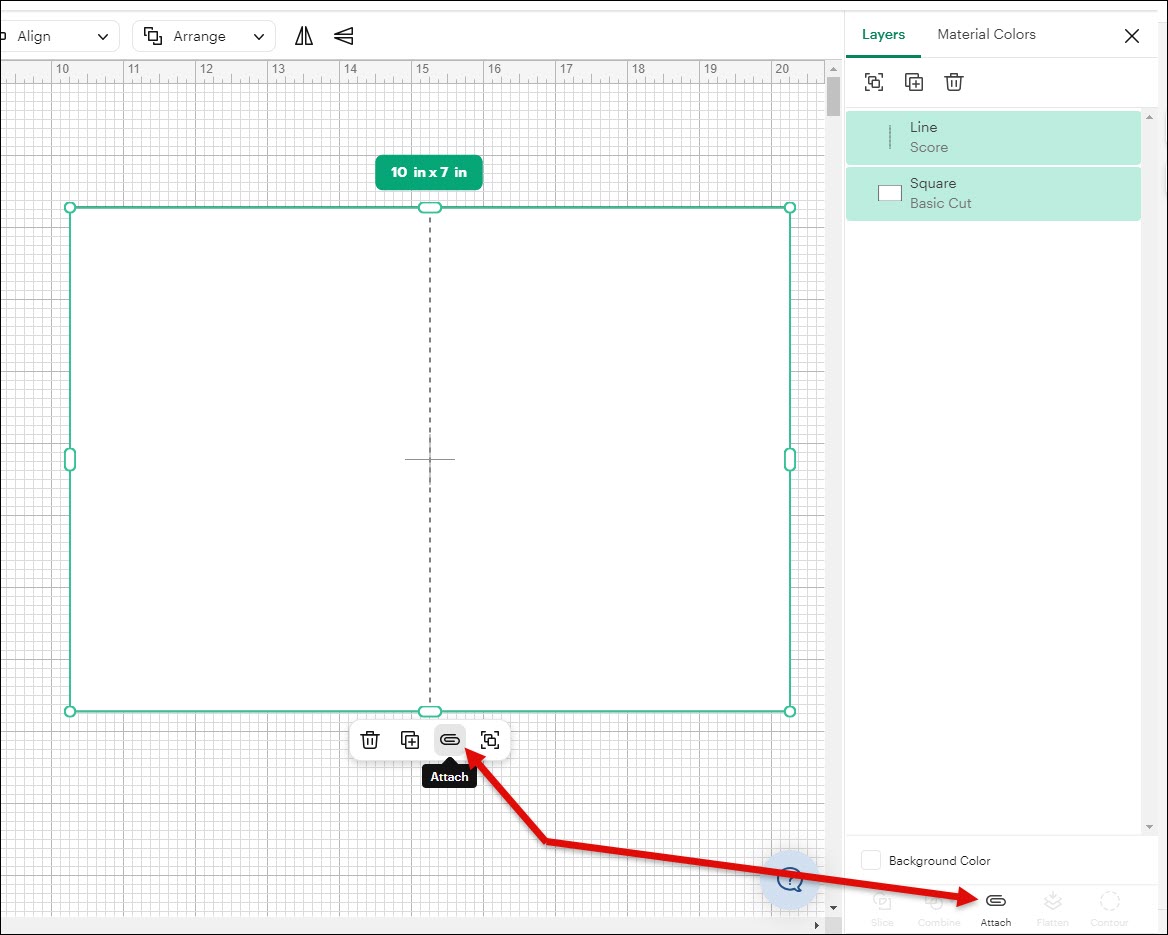

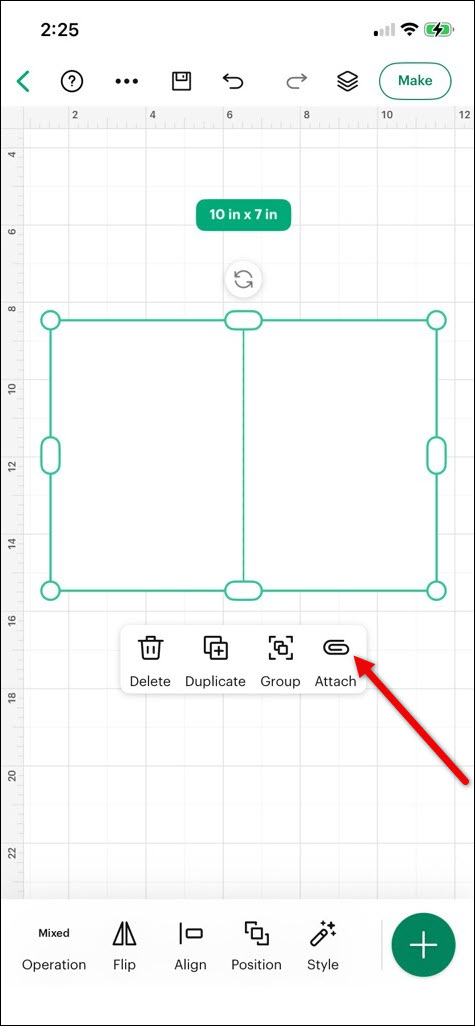

3. Select both the Score line and the Cut object, then use Attach to fasten your Score item to the Cut layer.

   Windows/Mac


   iOS/Android


→ Make

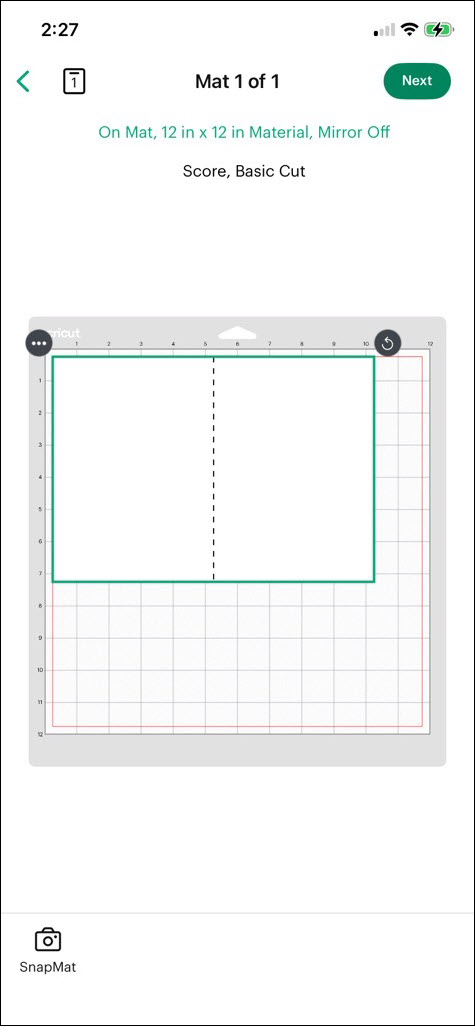

1. Click Make. Notice that, by using Attach, our Cut layer and Score layer stay together.

   Windows/Mac


   iOS/Android


2. Click Continue/Next.

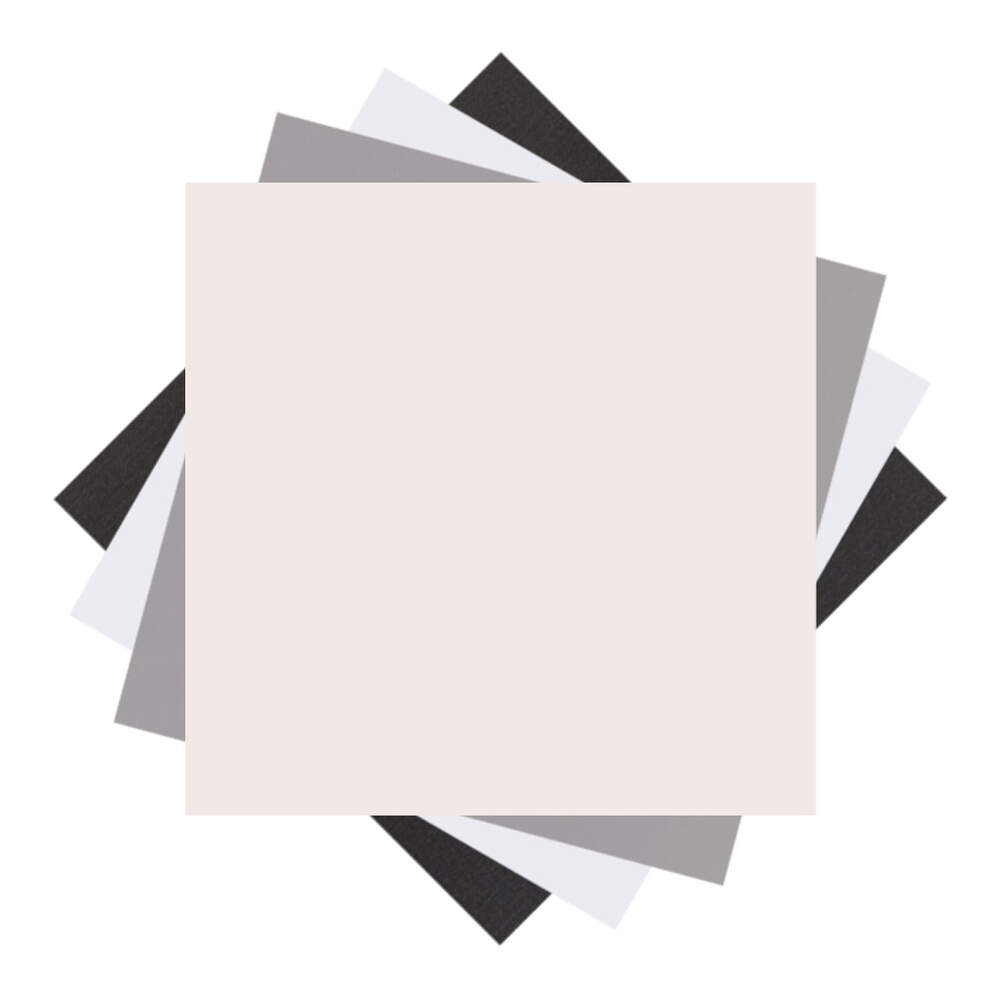

3. Choose a material setting.
4. Follow the onscreen prompts to load tools into your machine.  The operations you chose for your design elements allow Design Space to prompt you when it’s time to switch between tools.
5. To insert the Scoring Tool:
   • Open the Tool Clamp.
   • Grasp the top of the Premium Fine Point Cutting Tool and pull it upwards out of the Tool Clamp. CAUTION: Cutting tools are sharp. Use extreme caution.
   • Drop the Scoring Tool into the Tool Clamp – when properly inserted the top rim of the Scoring Tool rests flush with the top of the Tool Clamp.
   • Close the clamp.

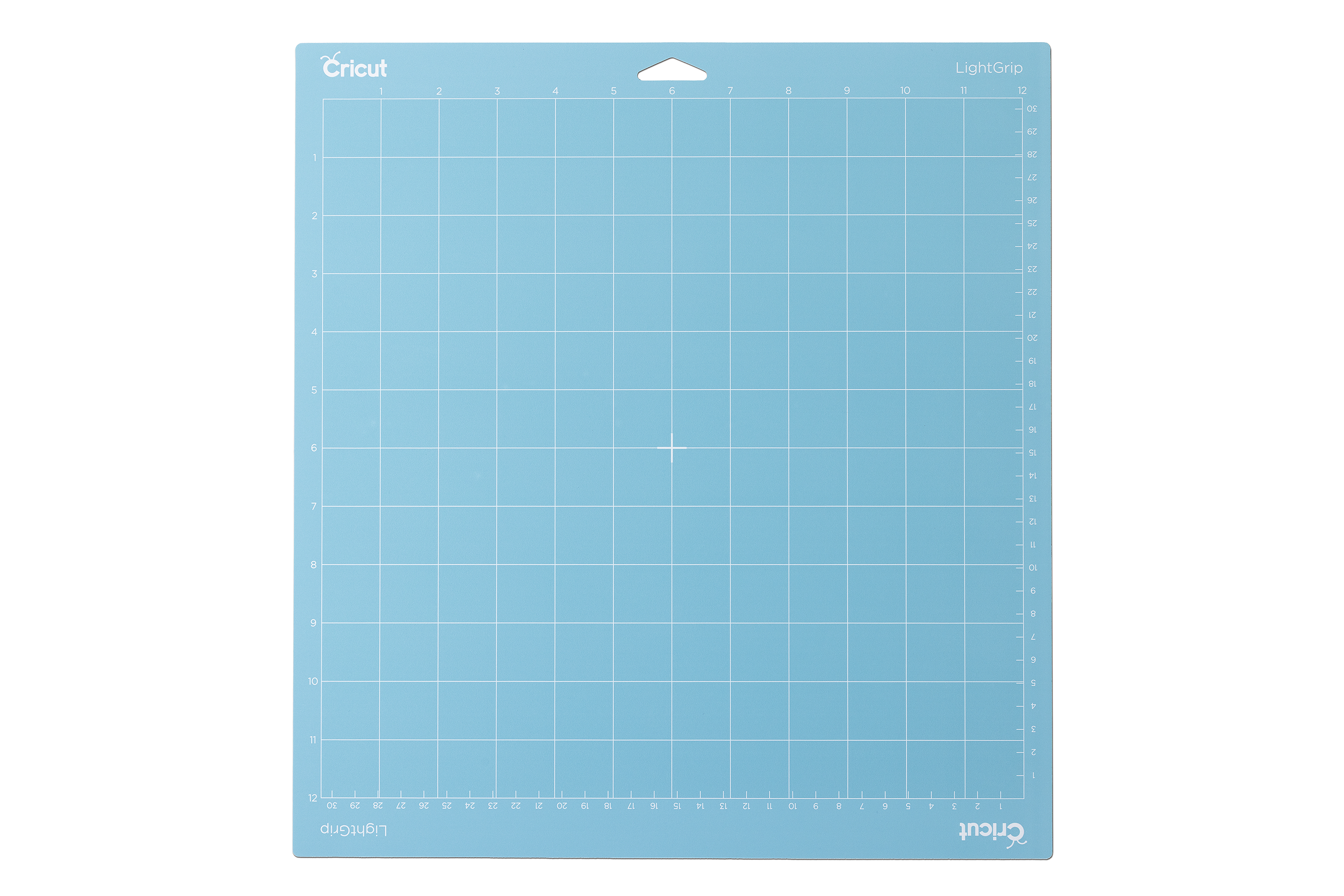

6. Load mat into the machine and press Go button to begin.
7. When prompted, open the Tool Clamp, remove the Scoring Tool, insert the Cutting Tool, and close the clamp. Press the Go button to continue making your project.
8. When the cut is complete, press the Unload button.
9. Remove the material from the mat and fold along the score line.

Enjoy!
