Find Cricut Maker 5 dimensions, workspace needs, material capabilities, power and connection details, and device requirements.
Planning your setup? Use these specifications to make sure you have enough space and that your materials and computer or mobile device are ready to work with Cricut Maker 5.
Machine specifications
| Specification | Cricut Maker 5 |
| Dimensions | 12.1 cm (4.7 in) H x 50.2 cm (19.8 in) W x 19 cm (7.5 in) L |
| Weight | 10.9 lbs (4.9kg) |
| Maximum material thickness | Up to 1/8 in (3 mm), depending on material density and the selected tool. Click here for more information. |
| Maximum cuttable width with Smart Materials | 12 in (30.5 cm) |
| Maximum cut area on a 12 in × 12 in mat | 11.5 in × 11.5 in (29.2 × 29.2 cm) |
| Maximum cut area on a 12 in × 24 in mat | 11.5 in × 23.5 in (29.2 × 59.7 cm) |
| Maximum Smart Material cut length | 12 ft (3.6 m) |
| Connection types | Bluetooth Low Energy (BLE) and USB-C |
| External power supply |
Input: 100–240 V - 50/60 Hz, 1.2 A Output: 24.0 V ⎓ 1.25A LPS |
Workspace requirements
- Use the machine indoors only, in dry locations. Do not use in or near water.
- Place the machine on a strong, flat, level and stable surface.

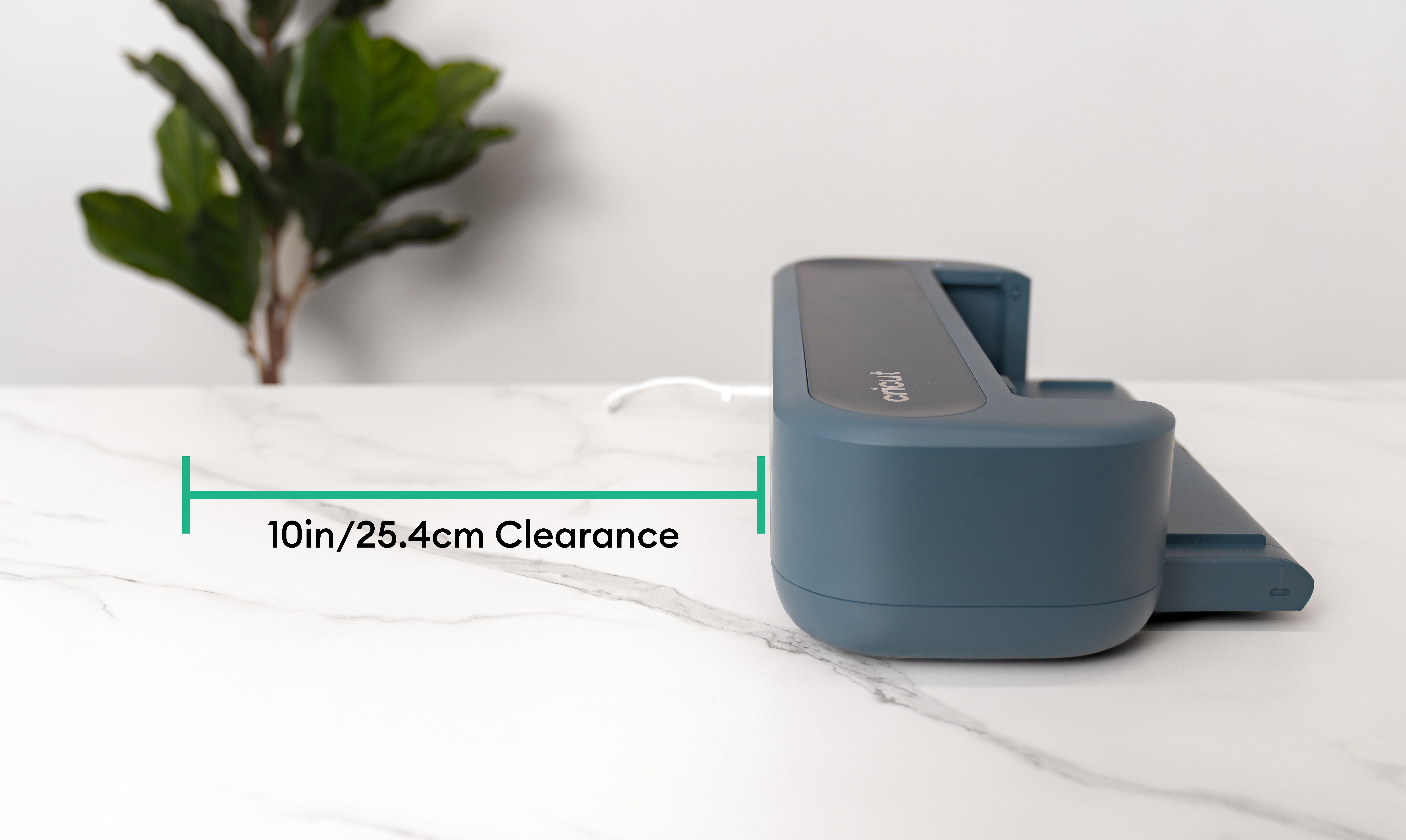

- Make sure your workspace has enough space in the front and back of the machine to allow the cutting mat to move through the machine freely.
- Only plug the power adapter into a compatible wall outlet.
- Position the power cord so that it will not drape over the countertop or tabletop where it can be tripped over, snagged or pulled on unintentionally.
Computer and mobile device requirements
Cricut Maker 5 is used with Design Space on a compatible computer or mobile device. Because minimum device requirements can change as Design Space is updated, check the current requirements before setup. For the best experience keep your operating system and Design Space app up to date.
| Device | Connection options | Important details |
| Windows or Mac computer | Bluetooth or USB-C Cable |
Connection via Bluetooth is recommended.
Connection via USB-C cable (included) is also available on Windows or Mac computers that meet the system requirements.
An internet connection is required for setup, sign-in, updates, and many Design Space features. |
| iPhone or iPad | Bluetooth | Connect through the Design Space machine picker. Connection via USB cable is not supported on mobile. |
| Android phone or tablet | Bluetooth | Connect through the Design Space machine picker. Connection via USB cable is not supported on mobile. |
Important: When using Bluetooth, select your Cricut Maker 5 from the machine picker in Design Space. Do not pair it in your computer, phone, or tablet's Bluetooth settings.
Internet and offline use
Plan to stay connected to the internet whenever you use Design Space. An internet connection is required to install and sign in to Design Space, set up products, update firmware, search for content, upload images and use Print then Cut
What works offline?
Connect to the internet first to sign in and download or save the content you’ll need.
- Design Space for Desktop (Windows/Mac): Save projects to your computer and download images and Cricut fonts to design, edit, and cut offline.
- Design Space for iOS: Download images and Cricut fonts to design and cut offline. Because projects can only be saved to the cloud, you’ll need an internet connection to save your work.
- Design Space for Android: Offline use is not supported.
Material and project capabilities
| Capability | What to know |
| Machine mats and Smart materials |
Can use 12 in × 12 in (30.5 cm × 30.5 cm) or 12 in × 24 in (30.5 cm × 61 cm) Cricut machine mats for materials like standard cardstock, vinyl, and iron-on. Can use 13 in (33 cm) wide Cricut Smart Materials. Smart Materials are made to load directly into the machine without a machine mat. How do I know if it's a Smart Material? Look for "Smart" in the material name on the packaging, such as Smart Vinyl or Smart Iron-On. If the material is not labeled as "Smart," use a machine mat. |
| Long cuts | For long cuts with Smart Materials, make sure you have enough material and adequate clearance behind the machine. To help ensure you have enough material for your project, wait to trim Smart Materials until the cut is complete. |
| Print Then Cut |
Print Then Cut size varies depending on your material size and the proportions of your specific project. Printable material sizes supported for Cricut Maker 5 include: A4: 8.3 in x 11.7 in (21 cm x 29.7 cm) Letter: 8.5 in x 11 in (21.6 cm x 27.9 cm) Legal: 8.5 in x 14 in (21.5 cm x 35.6 cm) Tabloid: 11 in x 17 in (27.9 cm x 43.2 cm) A3: 11.7 in x 16.5 in (29.7 cm x 42.0 cm) |
| Thick or dense materials |
Cricut Maker 5 can cut some thicker materials* up to 1/8 in (3mm). View the list of compatible materials here. |
*Note: While Cricut Maker 5 can cut some thicker materials, we do not guarantee that every material up to 1/8 in (3 mm) can be cut. A material’s thickness alone does not determine whether it can be cut. Density, rigidity, and the pressure required to cut it also affects compatibility. Always choose a Design Space material setting that is compatible with the installed tool and intended operation and test a small area first. Some materials, including acrylic blanks, may be compatible with engraving but not cutting.
Power and connection accessories
- Use only a compatible Cricut Maker 5 power adapter.
- Use the included USB-C to USB-C cable, or another USB-C cable that supports data transfer. Charge-only cables will not work as they cannot transfer project data.
- If your computer does not have a USB-C port, use a compatible data adapter. For the most reliable connection when using USB, connect directly to your computer instead of using an unpowered USB hub
