Edited: August 21, 2024
Note: Wavy Blade is compatible with Cricut Maker machines only and requires a QuickSwap housing.
Here's everything you need to know about Wavy Blade. For FAQ and other information, use the links below.
- Wavy Blade FAQ
- Materials to use with Wavy Blade
- How to switch out Wavy Blade
- Things to know before using Wavy Blade
Wavy Blade FAQ
What is the Wavy Blade?
Wavy Blade is just one of the ever-expanding suite of tools for Cricut Maker. Use Wavy Blade to create a whimsical wavy decorative edge on any design.
Can I use Wavy Blade with Cricut Explore family of machines?
No. Wavy Blade is compatible with Cricut Maker only. It requires the power and the drive mechanism that is built into the Cricut Maker Adaptive Tool System.
How do I tell my machine to use the Wavy Blade?
Based on the Operation you select for your image in Design Space, your machine knows which tool is required, and Design Space will prompt you to load it into your machine at the right time. Learn how to select an Operation.
Which materials can I use with Wavy Blade?
To see which materials work best with Wavy Blade, view this list.
How do I change a Wavy Blade?
The QuickSwap Housing makes changing tips as easy as pushing a button. When Cricut Maker prompts you to insert Wavy Blade, push and hold the button at the top of the housing to snap on the desired tip. Then release the button, insert the tool into Clamp B, and you’re ready to cut. View simple instructions.
Do I need a separate housing for Scoring Wheels, Engraving Tip, Wavy Blade, Perforation Blade, and Debossing Tip?
No. The same QuickSwap Housing may be used for all these tools.
What do the numbers on the tips refer to?
The etched numbers can help you identify which QuickSwap tool tip you are using.
- Scoring Wheel: 01
- Double Scoring Wheel: 02
- Perforation Blade: 11
- Debossing Tip: 21
- Wavy Blade: 31
- Engraving Tip: 41
Can I create custom settings in Design Space for Wavy Blade?
No. Currently custom material settings cannot be created for these tools. However, you do have the option to select More or Less pressure on the Project Preview screen.
Is Fast Mode available when using Wavy Blade?
No. Fast Mode is not available for use with Wavy Blade.
Does Wavy Blade need to be calibrated?
No. Wavy Blade does not need to be calibrated.
Which mat should I use when working with Wavy Blade?
Use the appropriate mat for your material.
Is Wavy Blade functionality available with Design Space mobile apps, like on my phone or tablet?
Yes, you can use it on Design Space mobile apps.
Can I use the housing from my Rotary Blade for my Wavy Blade?
No, the housings are not interchangeable. However, Perforation Blade, Wavy Blade, Engraving Tip, Debossing Tip, Single Scoring Wheel, and Double Scoring Wheel tools all use QuickSwap Housing.
Why are some materials greyed out?
Greyed out materials are not compatible. We've done a lot of testing to set you up for success with Wavy Blade, and Materials that have been qualified for use will be selectable under the Compatible tab on the materials screen. To select your material, select Browse All Materials, then select a material from the Compatible tab.
Materials to use with Wavy Blade
We've rigorously tested a wide range of materials for use with Cricut Maker + Wavy Blade.

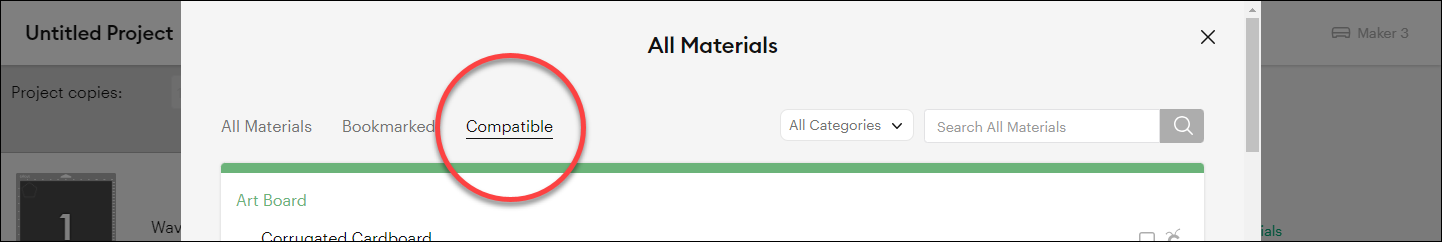

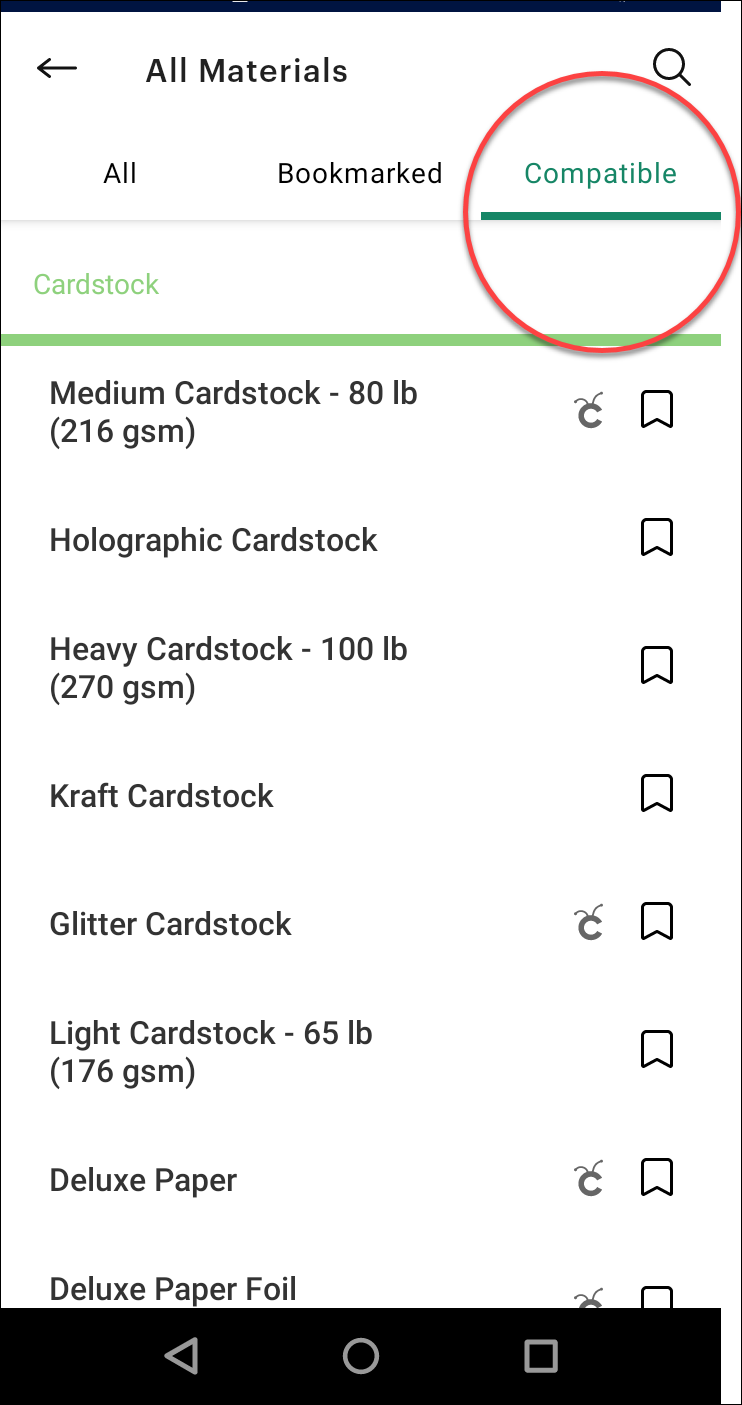

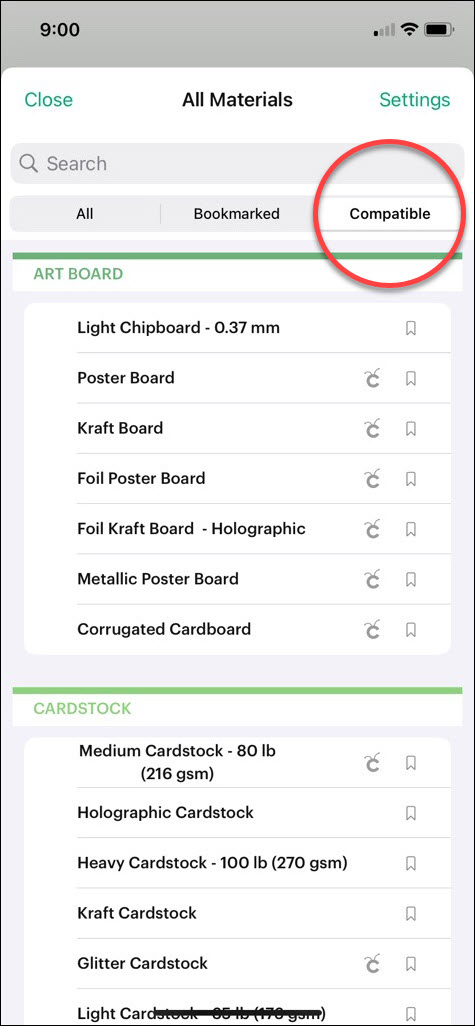

When sending a mat to your machine that includes a Wavy Operation, you'll notice some material settings are not enabled. Only materials that have been qualified for use will be selectable. To view and select materials from the Compatible tab, select Browse All Materials (Windows/Mac) or All Materials (iOS/Android).
What if I don’t see the material I want to use?
If you don’t see the material you’re looking for, test some of the existing settings on a scrap or the back of your material to find the one that works best.
Recommended materials for Wavy Blade
The following materials have been tested and work wonderfully with Wavy Blade. We'll continue to add more to this list.
| Art Board |
| Corrugated Cardboard |
| Foil Kraft Board - Holographic |
| Foil Poster Board |
| Kraft Board |
| Light Chipboard - 0.37 mm |
| Metallic Poster Board |
| Poster Board |
| Cardstock |
| Deluxe Paper |
| Deluxe Paper Foil Embossed |
| Glitter Cardstock |
| Heavy Cardstock - 100 lb (270 gsm) |
| Holographic Cardstock |
| Kraft Cardstock |
| Light Cardstock - 65 lb (176 gsm) |
| Medium Cardstock - 80 lb (216 gsm) |
|
Fabric |
| Cotton |
| Cotton, Bonded |
| Denim |
| Faux Leather (Paper Thin) |
| Flannel |
| Fleece |
| Fusible Fabric |
| Fusible Fleece |
| Linen |
| Medium Fabrics (like Cotton) |
| Medium Fabrics (like Cotton), Bonded |
| Polyester |
|
Felt |
| Felt |
| Felt, Stiff |
| Felt, Wool Fabric |
|
Foam |
| Craft Foam |
| Glitter Craft Foam |
|
Iron-On |
| Everyday Iron-On |
| Everyday Iron-On Mesh |
| Everyday Iron-On Mosaic |
| Express Iron-On |
| Foil Iron-On |
| Glitter Iron-On |
| Glitter Mesh Iron-On |
| Holographic Iron-On |
| Holographic Iron-On Mosaic |
| Holographic Sparkle Iron-On Mosaic |
| Infusible Ink Transfer Sheet |
| Iron-On |
| Metallic Iron-On Mosaic |
| Patterned Iron-On |
| SportFlex Iron-On |
|
Leather |
| Genuine Leather |
| Tooling Leather - 2-3 oz. (0.8 mm) |
|
Paper |
| Calibration Paper |
| Construction Paper |
| Copy Paper - 20 lb (75 gsm) |
| Copy Paper - 24 lb (90 gsm) |
| Copy Paper - 32 lb (120 gsm) |
| Crepe Paper |
| Heavy Watercolor Paper - 140 lb (300 gsm) |
| Laser Copy Paper |
| Light Patterned Paper |
| Pearl Paper |
| Photo Paper |
| Printable Sticker Paper, White (Gray Liner Printing) |
| Shimmer Paper |
| Sparkle Paper |
| Tissue Paper |
| True Brushed Paper |
| Vellum |
|
Plastic |
| Acetate |
| Foil Acetate |
|
Vinyl |
| Premium Vinyl - Frosted Glitter |
| Premium Vinyl - Frosted Gray |
| Premium Vinyl - Frosted Opaque |
| Premium Vinyl - Holographic 3D Texture |
| Premium Vinyl - Holographic Art Deco |
| Premium Vinyl - Holographic Bubbles |
| Premium Vinyl - Holographic Crystals |
| Premium Vinyl - Holographic Rose Bubble |
| Premium Vinyl - Holographic Threads |
| Premium Vinyl - Mosaic |
| Premium Vinyl - Pearl |
| Premium Vinyl - Permanent Glossy |
| Premium Vinyl - Removable Matte |
| Premium Vinyl - Shimmer |
| Premium Vinyl - Textured |
| Premium Vinyl - Textured Metallic |
| Premium Vinyl - True Brushed |
| Printable Vinyl, White (Gray Liner Printing) |
|
Other |
| Duct Tape Sheet |
| Washi Sheet |
How to switch out Wavy Blade
When you need to swap your tip, follow these simple instructions.
Things to know before using Wavy Blade
- Wavy Blade is compatible with Cricut Maker only and requires a QuickSwap Housing.
- As you load the tool into the machine, do not press the button on top of the housing. Doing so may cause the tip to release.
- Wavy Blade is sharp! Use caution when handling.
- Wavy Blade comes with a protective cap. When swapping tips, leave cap in place. Remove cap before installing tool in Clamp B.
- We do not recommend cutting intricate designs using Wavy Blade. Due to its curved nature, it executes a slight overcut of the image paths in order to ensure the full length of the path is completely cut. This may cause it to cut over adjacent cut paths that are too close.
- We recommend cutting images no smaller than 3/4" in size, with space between cut paths at least 3/4" or more.
- The Wavy Operation on your Design Space Canvas will not appear as a wavy line. From the Edit menu, the Operation dropdown will show Wavy when Wavy Operation is selected. The word Wavy will also appear next to that layer in the Layers panel, and Design Space will prompt you to insert Wavy Blade before it cuts.
- We do not recommend adding an additional pass as the wave amplitudes may not align.
- Due to the wavy shape of the blade edge, starting and ending points of an image may not align.
