Edited: August 15, 2024
Note: Debossing Tip is compatible with Cricut Maker machines only and requires a QuickSwap Housing.
Here’s everything you need to know about Debossing Tip. For FAQ and other information, use the links below.
- Debossing Tip FAQ
- Materials to use with Debossing Tip
- How to switch out Debossing Tip
- Things to know about using Debossing Tip
Debossing Tip FAQ
What is the Debossing Tip?
Can I use Debossing Tip with Cricut Explore family of machines?
How do I tell my machine to use the Debossing Tip?
How do I position my design so that it debosses where I want it to?
Use the Attach tool to fasten your debossing design to any cut layer.
If debossing precut items: When you are finished creating your design in Design Space, select Make It. On the next screen, the project preview screen, select and drag your design to the location on the mat where you would like it to deboss. Place your material on your mat in the corresponding location. If using the Design Space mobile app on an iOS device, use the SnapMat feature to more accurately position your design.
Which materials can I use with Debossing Tip?
How do I change a Debossing Tip?
The QuickSwap Housing makes changing tips as easy as pushing a button. When your Cricut Maker series machine prompts you to insert Debossing Tip, push and hold the button at the top of the housing to snap on the desired tip. Then release the button, insert the tool into Clamp B, and you’re ready to cut. View simple instructions.
Do I need a separate housing for Scoring Wheels, Engraving Tip, Wavy Blade, Perforation Blade, and Debossing Tip?
No. The same QuickSwap Housing may be used for all these tools.
What do the numbers on the tips refer to?
The etched numbers can help you identify which QuickSwap tool tip you are using.
- Scoring Wheel: 01
- Double Scoring Wheel: 02
- Perforation Blade: 11
- Debossing Tip: 21
- Wavy Blade: 31
- Engraving Tip: 41
Can I create custom settings in Design Space for Debossing Tip?
No. Currently custom material settings cannot be created.
Is Fast Mode available when using Debossing Tip?
No. Currently, Fast Mode is not available for use with Debossing Tip.
Does Debossing Tip need to be calibrated?
No. Debossing Tip does not need to be calibrated.
Which mat should I use when working with Engraving Tip?
Use the appropriate mat for your material.
Is Debossing Tip functionality available with Design Space mobile apps, like on my phone or tablet?
Yes, you can use it on Design Space mobile apps.
Can I use the housing from my Rotary Blade for my Debossing tip?
No, the housings are not interchangeable. However, Perforation Blade, Wavy Blade, Engraving Tip, Debossing Tip, Single Scoring Wheel, and Double Scoring Wheel tools all use QuickSwap Housing.
How long will my project take when using Debossing Tip?
Debossing project times will vary depending on the size and intricacy of the design. Material settings for debossing do not contain multiple passes but will take longer if the design is intricate.
My Debossing Tip lifts and spins for several seconds periodically during debossing. Did something go wrong?
No. This mitigates wear on the tool.
Why are some materials greyed out for debossing?
Greyed out materials are not compatible. We’ve done a lot of testing to set you up for success with Debossing Tip, and materials that have been qualified for use will be selectable under the Compatible tab on the materials screen. To select your material, select Browse All Materials, then select a material from the Compatible tab.
Materials to use with Debossing Tip
We've rigorously tested a wide range of materials for use with Cricut Maker + Debossing Tip.

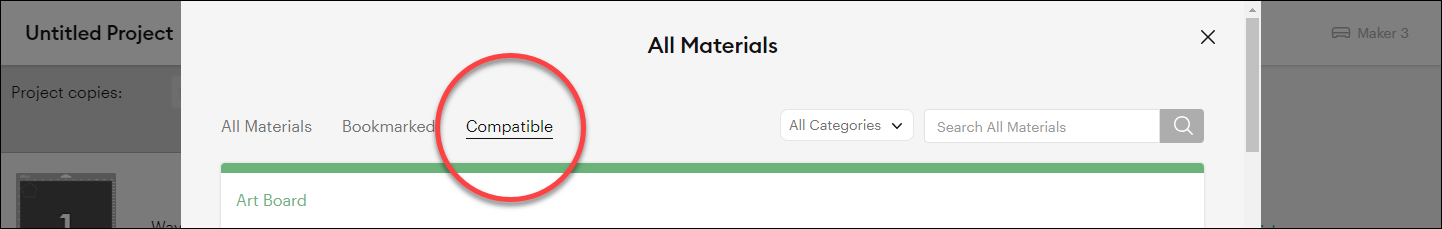

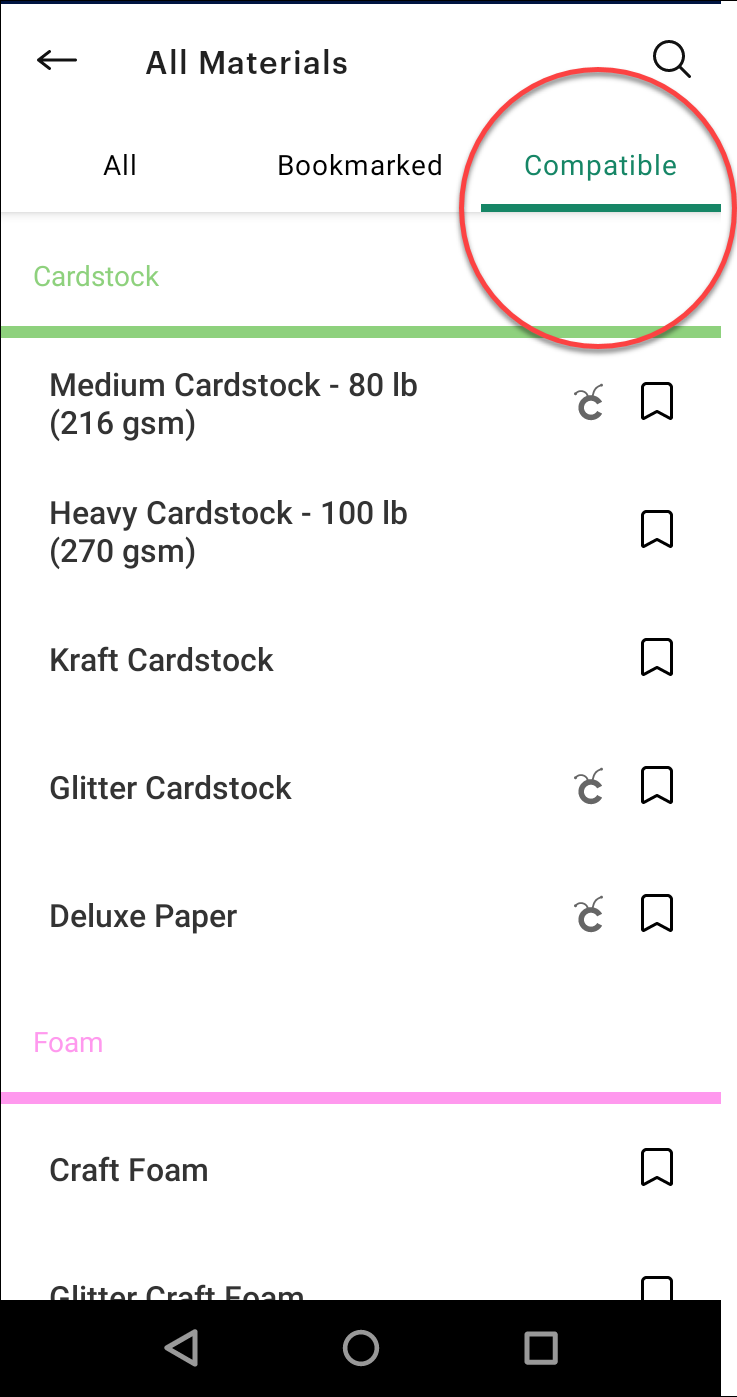

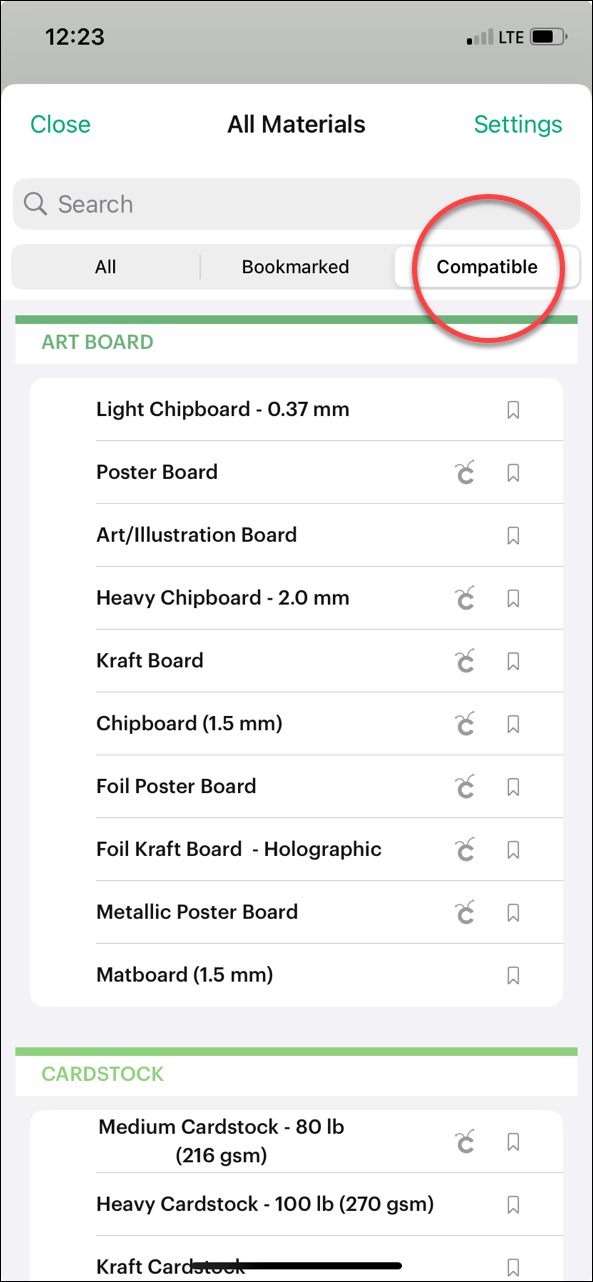

When sending a mat to your machine that includes a Deboss Operation you’ll notice some material settings are not enabled. Only materials that have been qualified for use will be selectable. To view and select materials from the Compatible tab, select Browse All Materials (Windows/Mac) or All Materials (iOS/Android).
What if I don’t see the material I want to use?
If you don’t see the material you’re looking for, test some of the existing settings on a scrap or the back of your material to find the one that works best.
Recommended materials for Debossing Tip
The following materials have been tested and work wonderfully with the Debossing Tool. We’ll continue to add more to this list.
| Art Board |
|
Art/Illustration Board |
| Chipboard (1.5 mm) |
| Foil Kraft Board - Holographic |
| Foil Poster Board |
| Heavy Chipboard - 2.0 mm |
| Kraft Board |
| Light Chipboard - 0.37 mm |
| Matboard (1.5 mm) |
| Metallic Poster Board |
| Poster Board |
| Cardstock |
| Deluxe Paper |
| Glitter Cardstock |
| Heavy Cardstock - 100 lb (270 gsm) |
| Kraft Cardstock |
| Medium Cardstock - 80 lb (216 gsm) |
| Fabric |
| Faux Leather (Paper Thin) |
| Foam |
| Craft Foam |
| Glitter Craft Foam |
| Foil & Metal |
| Foil Tape - Shiny Side Down |
| Foil Tape - Shiny Side Up |
| Leather |
| Genuine Leather |
| Metallic Leather |
| Tooling Leather - 2-3 oz. (0.8 mm) |
| Tooling Leather - 4-5 oz. (1.6 mm) |
| Tooling Leather - 6-7 oz. (2.4 mm) |
| Paper |
| Calibration Paper |
| Construction Paper |
| Copy Paper - 20 lb (75 gsm) |
| Copy Paper - 24 lb (90 gsm) |
| Copy Paper - 32 lb (120) |
| Flocked Paper |
| Heavy Watercolor Paper - 140 lbs (300 gsm) |
| Laser Copy Paper |
| Light Patterned Paper |
| Pearl Paper |
| Shimmer Paper |
| Smooth Glitter Paper |
| Sparkle Paper |
| Sticker Paper, Removable |
| Vellum |
| Other |
| Balsa - 1/16" (1.6 mm) |
| Balsa - 3/32" (2.4 mm) |
| Duct Tape Sheet |
| Plastic |
| Foil Acetate |
| Transparency |
How to switch out Debossing Tip
When you need to swap your tip, follow these simple instructions.
Things to know about using Debossing Tip
- Debossing Tip is compatible with Cricut Maker machines only and requires a QuickSwap Housing.
- As you load the tool into the machine, do not press the button on top of the housing. Doing so may cause the tip to release.
- To mitigate wear on Debossing Tip, it will lift and rotate for several seconds periodically during debossing. This is normal.
- The roller ball on the tip does not protrude much from the housing. Thicker, compressible materials may also receive an impression from the housing.
