Edited: August 28, 2024
When you want your design to use multiple colors of Foil, select your machine and follow the steps below.
Note: Cricut Foil Transfer Systems are supported on Design Space for Desktop only. This functionality is not currently available in Design Space for mobile devices.

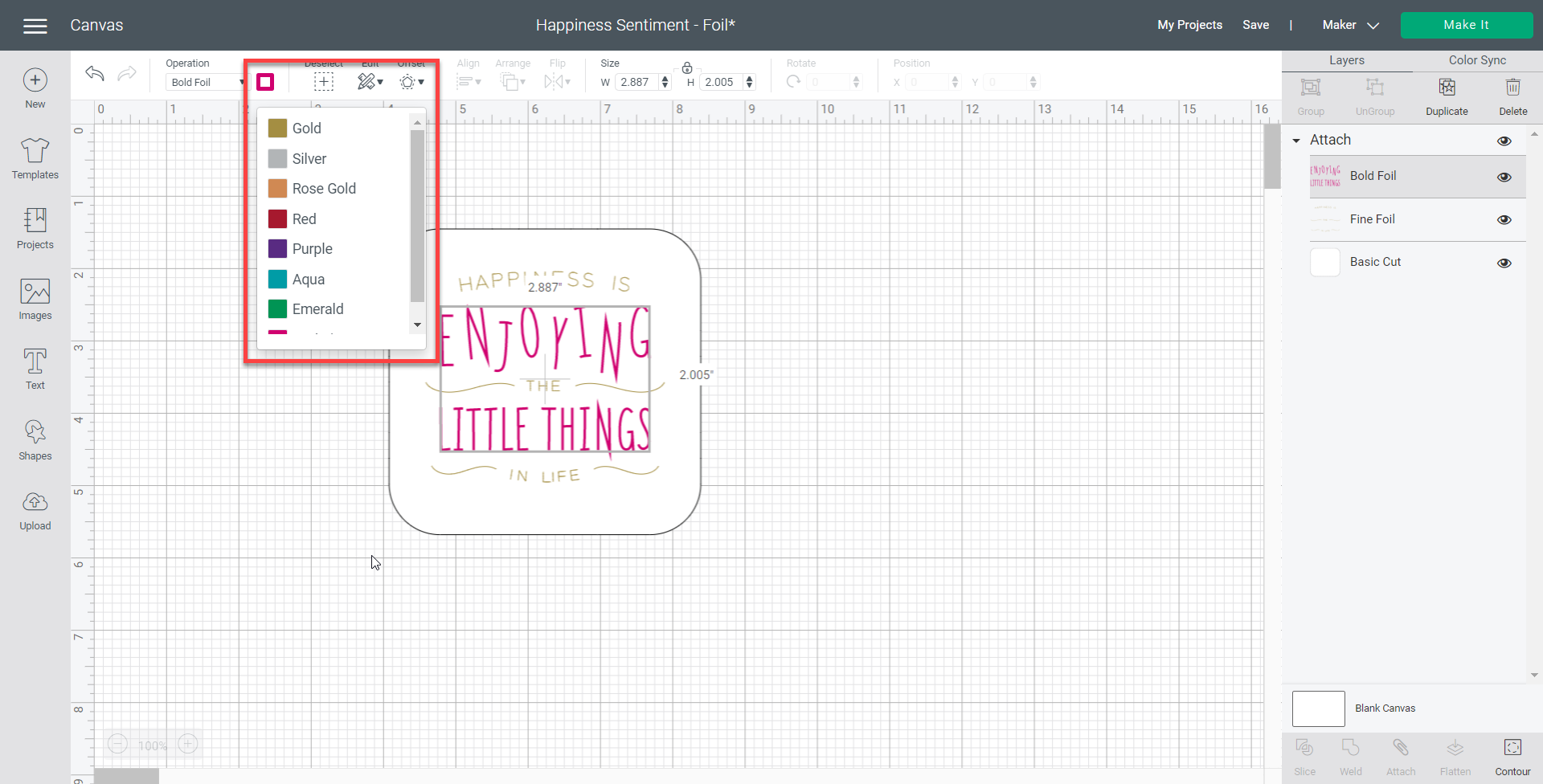

- Select the Draw > Foil operation and a foil color for each part of your design that will use foil. This makes it possible for Design Space to prompt you to use the correct color when it's time.

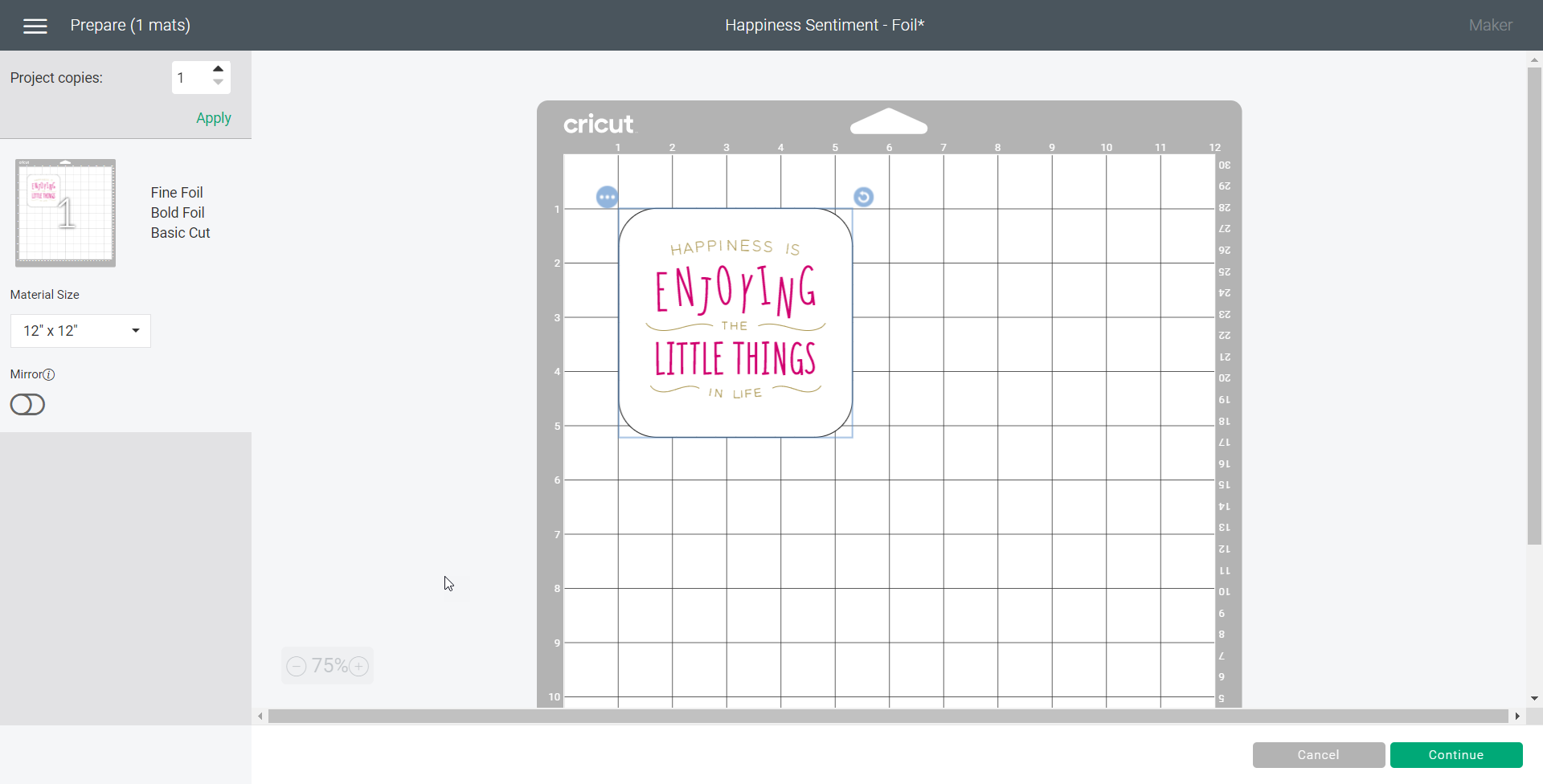

- Move your design away from the edges and top of the mat on the project preview and place your base material on the mat accordingly. This will make it easier to switch foil colors when it's time.

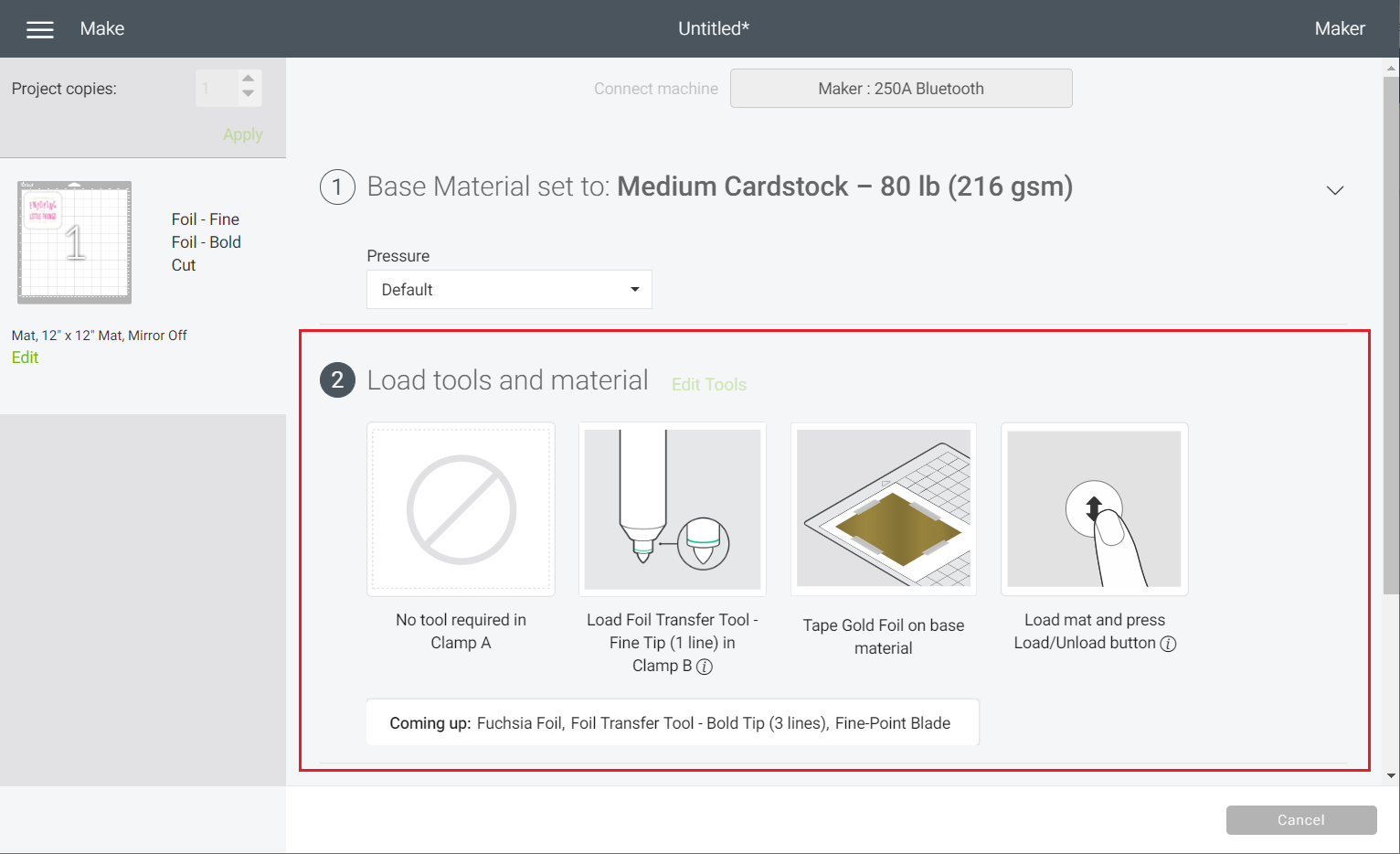

- Choosing the right operation and color allows the software to tell you which foil color to put on your material before loading it into the machine.

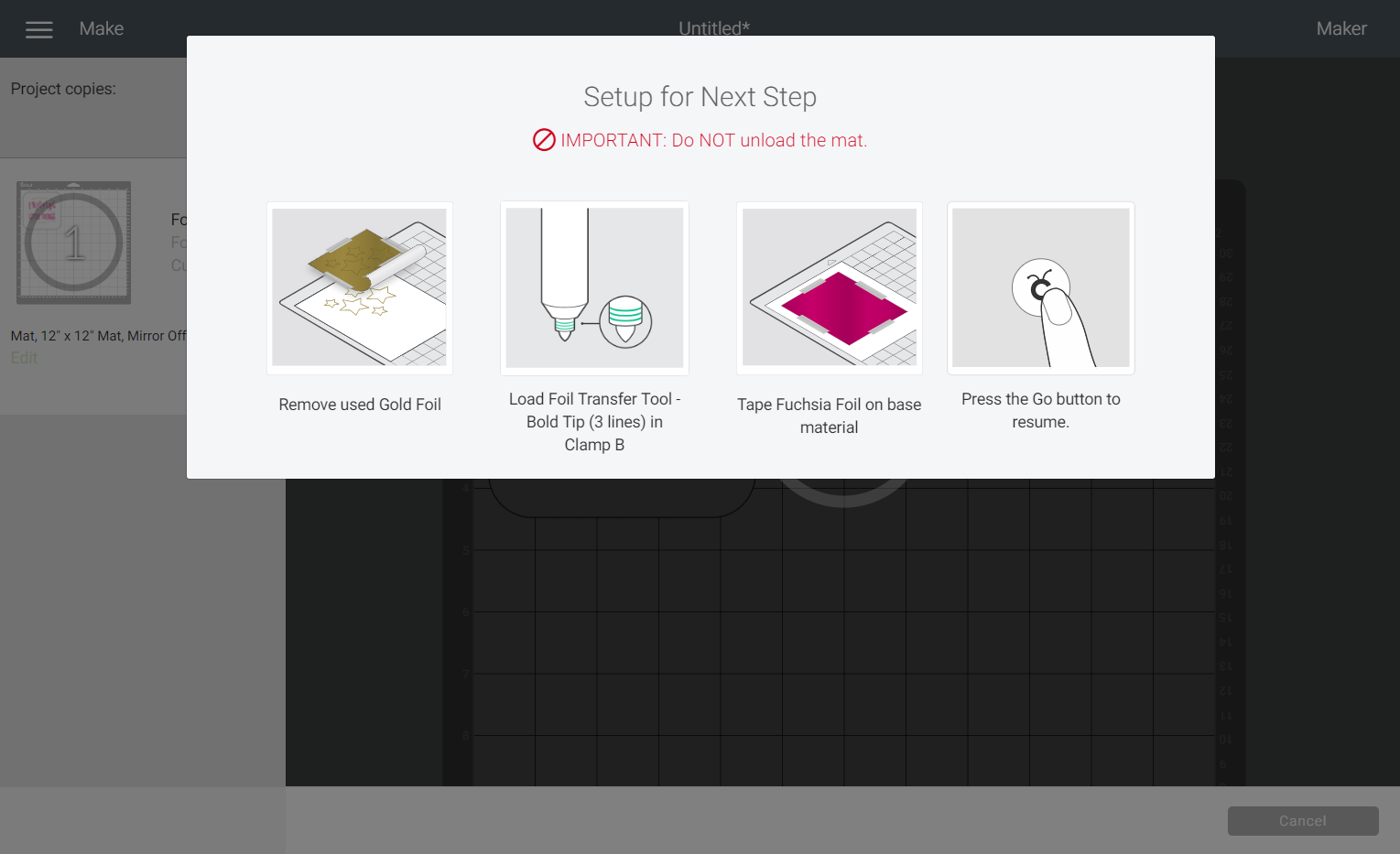

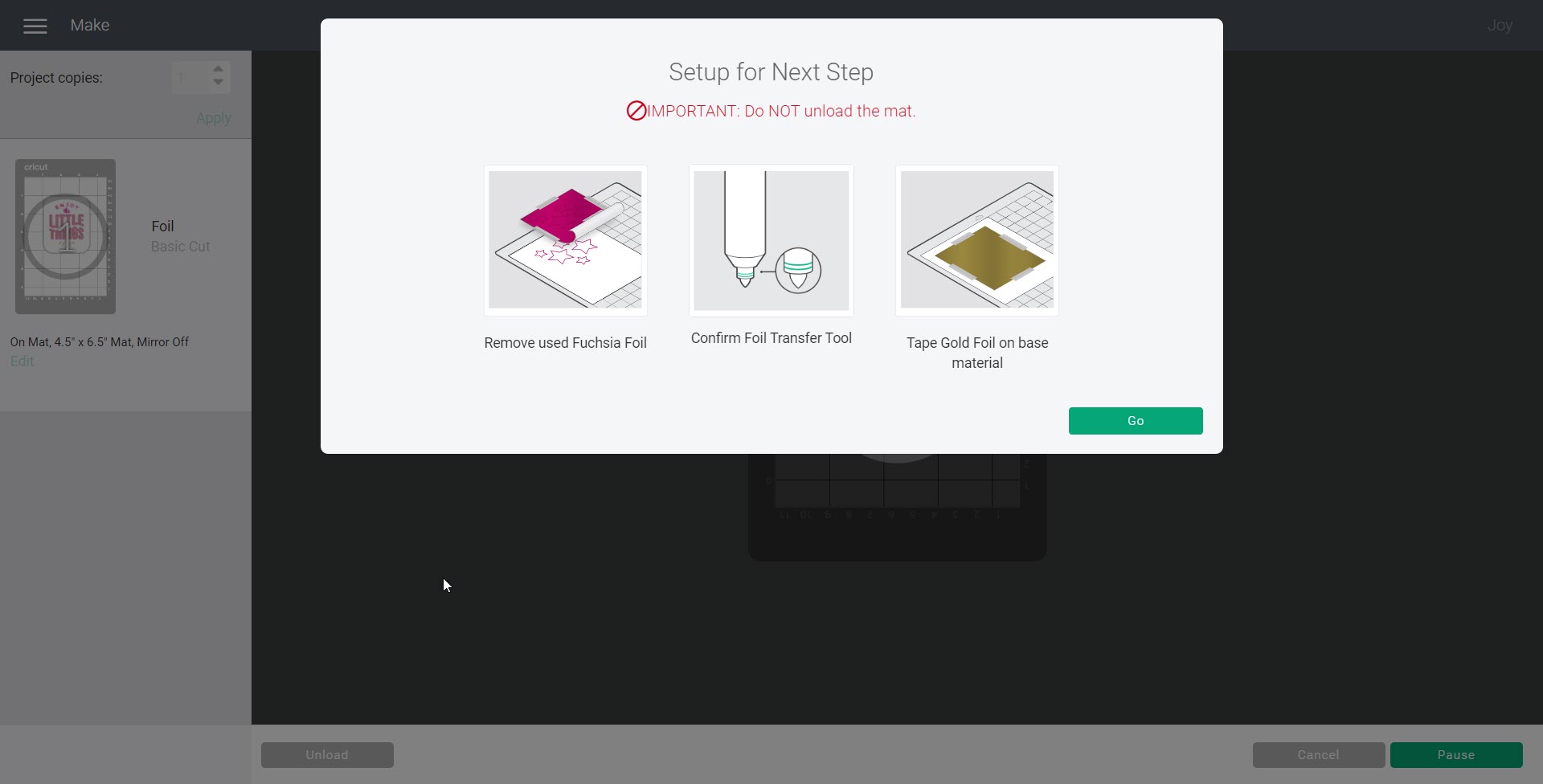

- The software will then prompt you when it's time to switch foil colors and/or tools.
Important: Do not unload the mat to switch foil colors. Be sure to remove foil as prompted before the final cut step.

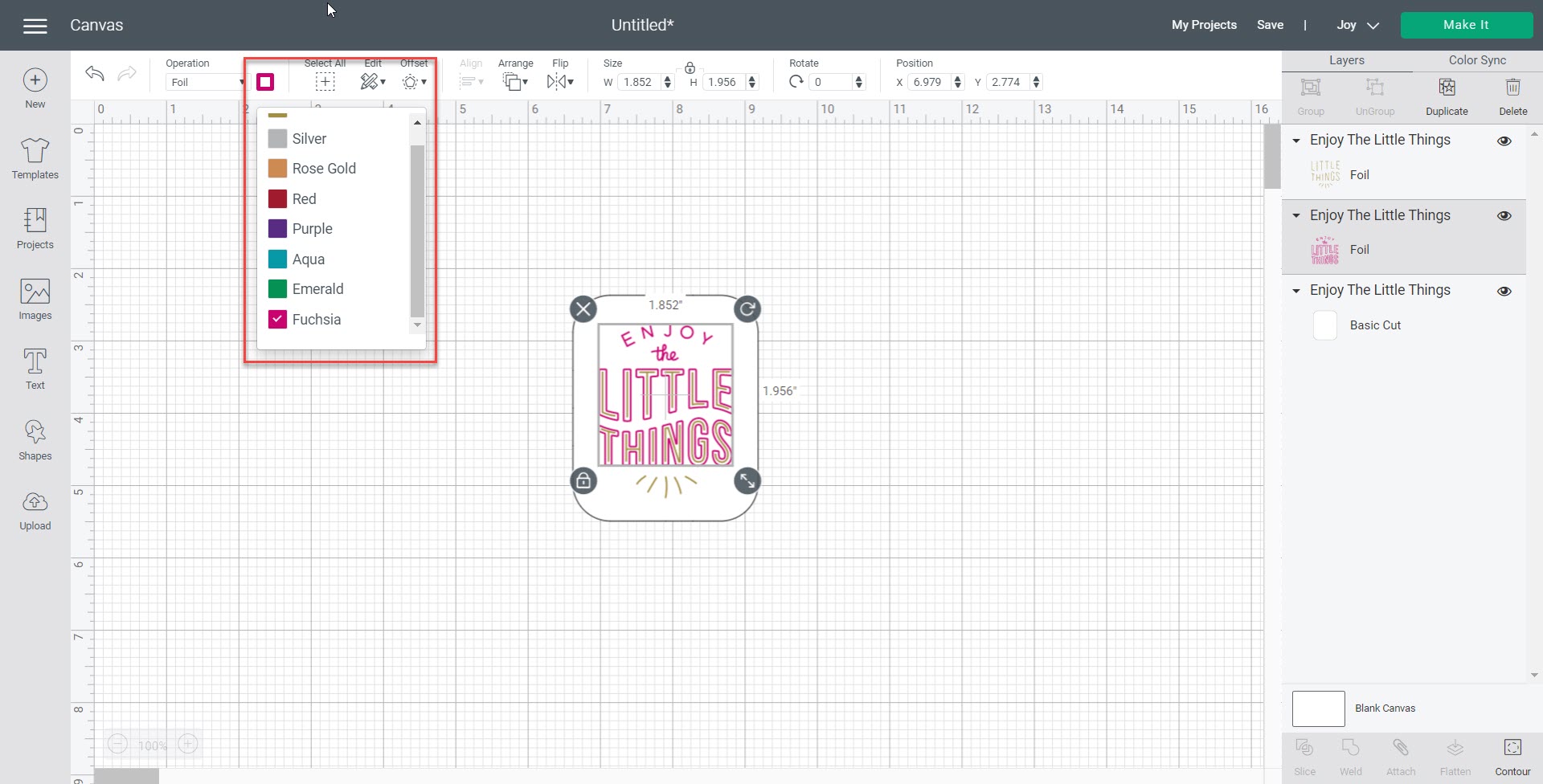

- Select the Draw > Foil operation and a foil color for each part of your design that will use foil. This makes it possible for Design Space to prompt you to use the correct material when it’s time.

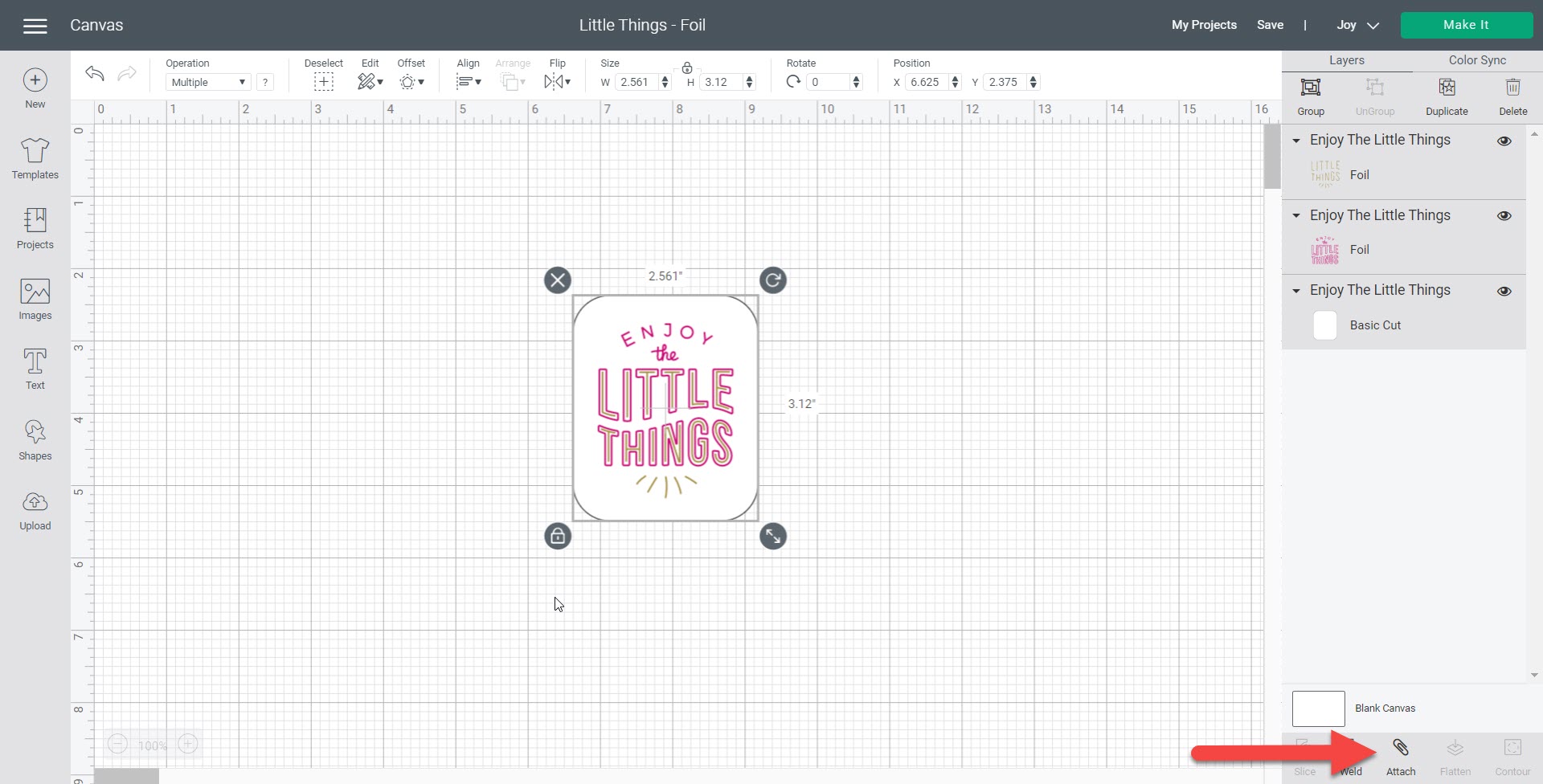

- Position images as desired. Use Attach as needed to fasten Foil layers to the appropriate Cut layer. Then select Make It to send your project to the machine.

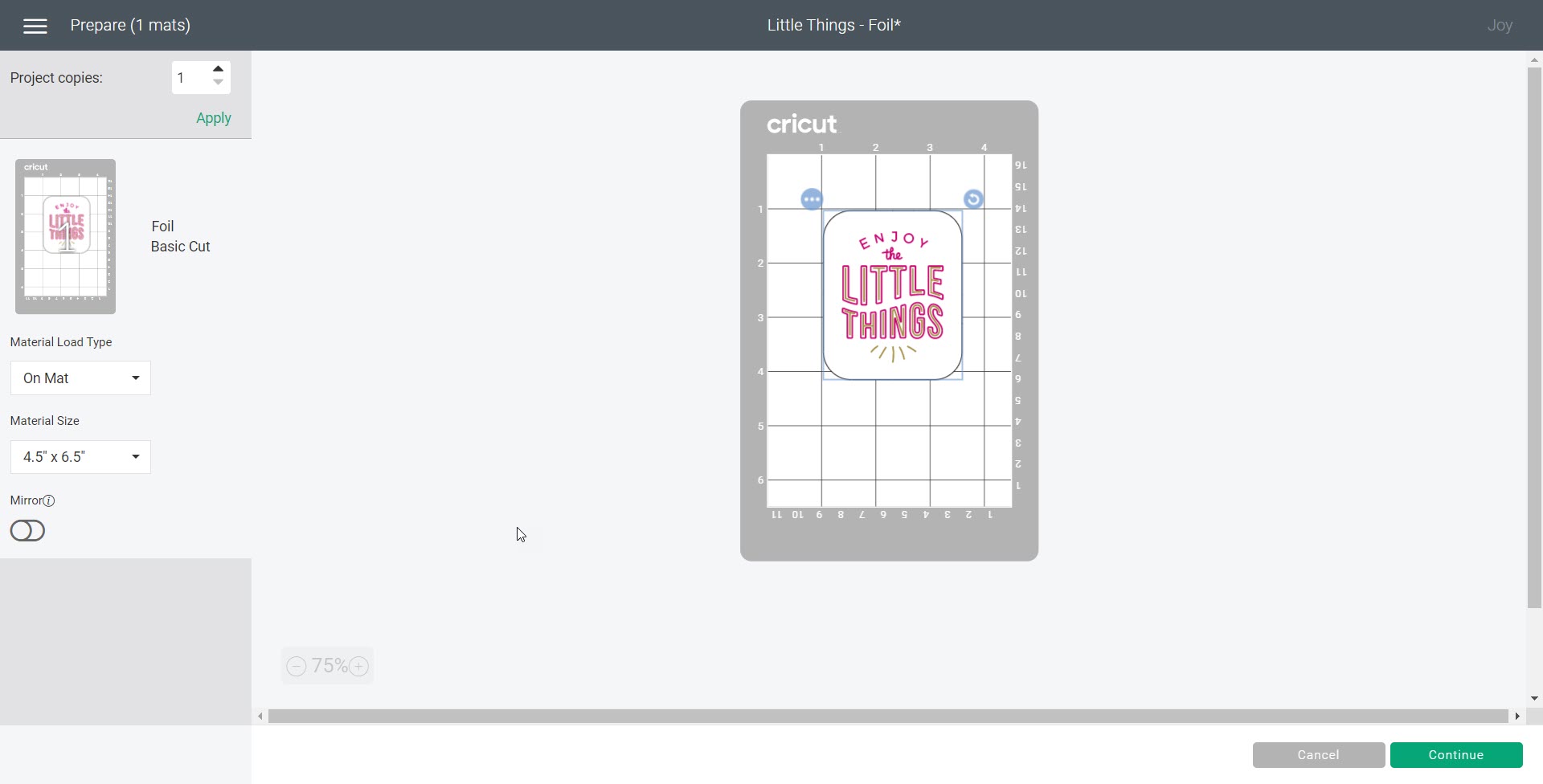

- Move your design away from the edges and top of the mat on the project preview and place your base material on the mat accordingly. This will make it easier to switch foil colors when it's time. Select Continue.

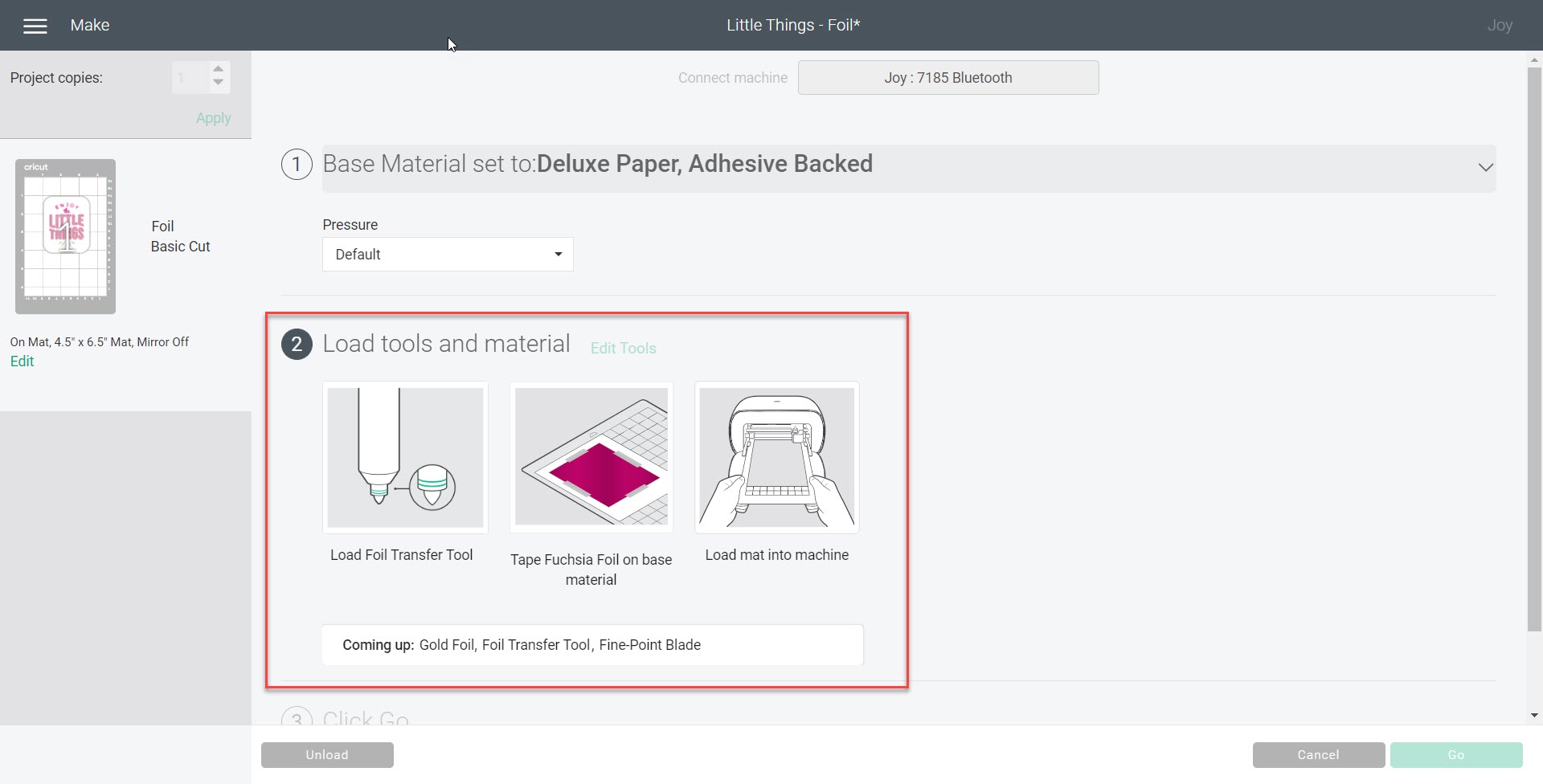

- Follow the on-screen prompts for which tools and material to load. Choosing the right color on the Canvas allows Design Space to tell you which foil color to put on your material when it’s time.

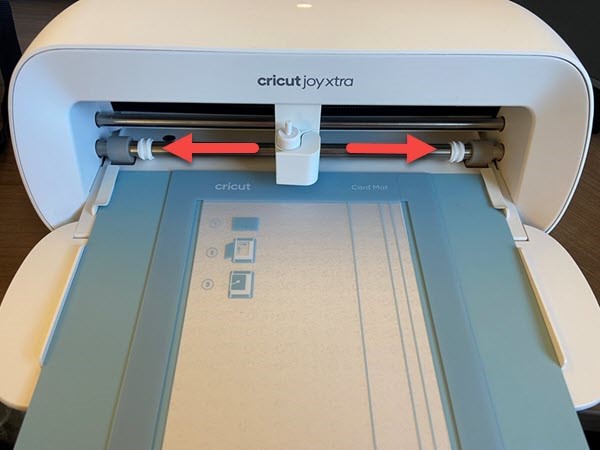

- To avoid track marks on your cards when foiling with Cricut Joy Xtra, move the machine star wheels to the sides of the rail, making sure none of them will roll over the top of the card.
- To avoid track marks on your cards when foiling with Cricut Joy Xtra, move the machine star wheels to the sides of the rail, making sure none of them will roll over the top of the card.
- The software will then prompt you when it's time to switch foil colors.
Important: Do not unload the mat to switch foil colors. Be sure to remove foil as prompted before the final cut step.
- Enjoy!
