Materials

How to load Cricut StickerPix Print Photo Paper and Sticker Sheets

Learn how to load Photo Paper and Sticker Sheets into the Cricut StickerPix Print Material Tray.

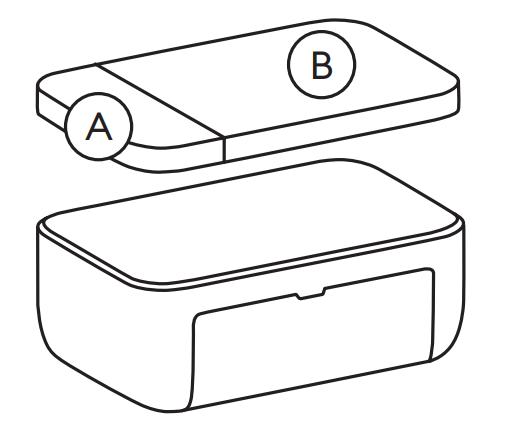

  1. Lift the Material Tray off the top of the printer.

    Lift Material Tray.png

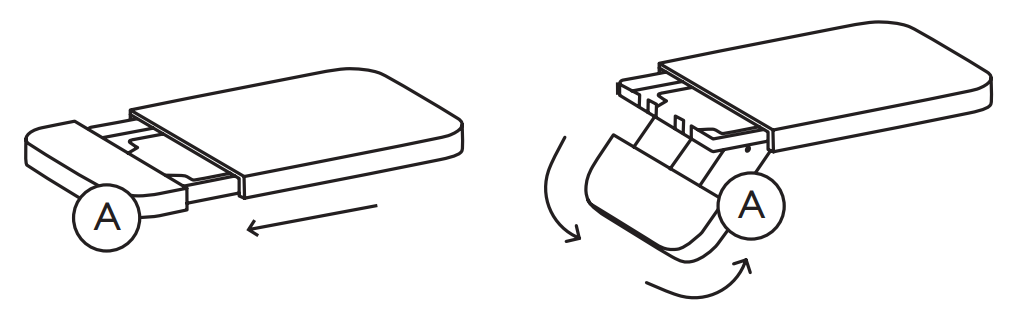

  2. Slide out the cap (part A) and flip it underneath the Material Tray until it secures in place.

    Flip Part A.png

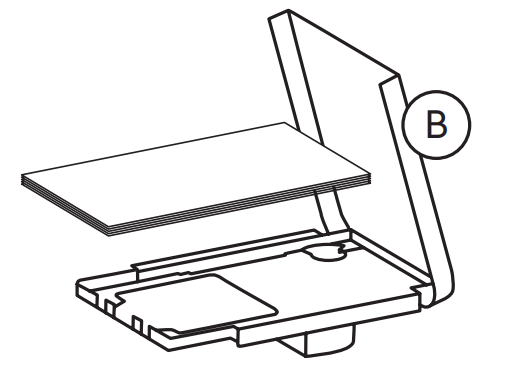

  3. Lift the lid (part B) and load the material. Load the material into the tray, printing side up.

    Important: Do not touch the printing side of the material. Oils and fingerprints can affect print quality.

    Lift Part B then Load.png

    Important: Do not remove Photo Paper tear-off strips until after printing – they are necessary to help feed the material through the machine.

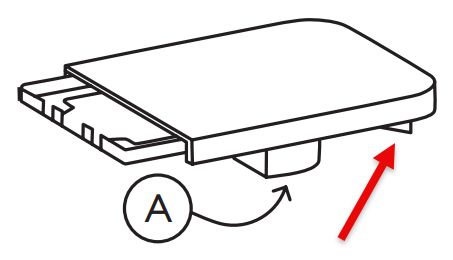

  4. Close the lid and lower the kickstand. Make sure both are securely in place before proceeding.

    Close Part B flip Kickstand - with arrow.png

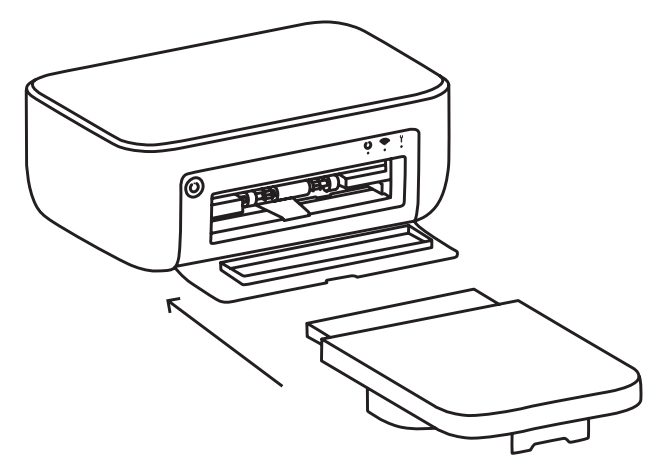

  5. Insert the Material Tray into the Material Tray Slot. Open Machine Door, then insert Material Tray into the slot. Push until the tray clicks into place.

    Insert Material Tray..png

Load limit

  • Photo Paper: Up to ten (10) sheets.
  • Sticker Sheets: One (1) Sticker Sheet at a time.

Note: When not in use, place the Material Tray on top of the printer and close the machine door.
