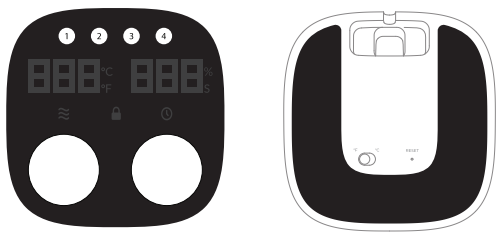

Layout of Display

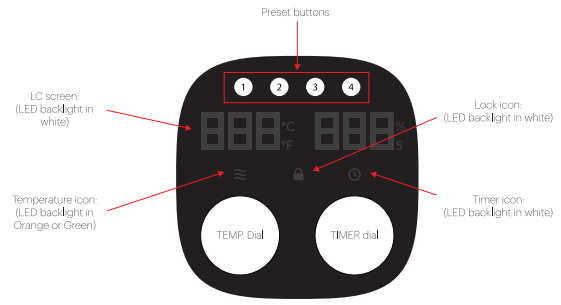

Front panel of the control pod

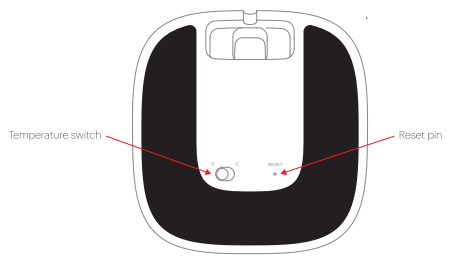

Back panel of control pod
Changing Celsius to Fahrenheit
To change from Celsius to Fahrenheit, turn the pod over, and move the switch to your preference.
Adjusting the Temperature and Time
- Refer to the Cricut Heat Guide to ensure you are using recommended settings with Cricut Autopress.
Note: Machine will begin to heat to default temperature of 315°F (157°C) and 30 seconds for the timer, if powering on for the first time. Otherwise, it will always default to the last-used temperature and time setting.
- Once you have determined your settings from Cricut Heat Guide, turn the left dial to the right for a higher temperature and to the left for a lower temperature. Each ‘click’ will move the temperature up/down in 5° increments. If no dial rotation is detected in 1000ms, the current displayed temperature is confirmed.
- Next, turn the right dial to set the timer. Turn the right dial to the right to increase the time and to the left to decrease the time. Each ‘click’ will move the time up/down in 1-second increments. If moved quickly it will change in 5-second increments. If no dial rotation is detected in 1000ms, the current displayed temperature is confirmed.
- Temperature icon will be orange while the machine is heating up or cooling down. Once it is green, it has reached the target temperature. This is the same for the handle LED.
How to Use Presets
- Make sure you get the correct settings for your favorite materials from Cricut Heat Guide, then set the temperature and time on the control pod.
- Press and hold down one of the preset buttons until you hear a single chime. This means the preset was saved. You can save up to 4 preset temperatures and times.
Error states and how they will display

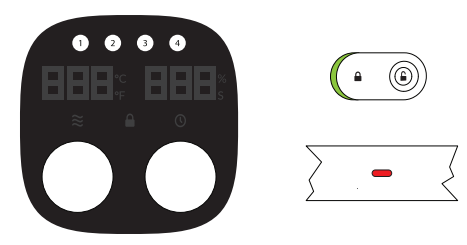

Control Pod Error Only
- Handle LED: Flashing RED
- Temperature Icon: OFF
- Timer Icon: OFF
- Lock Icon: OFF
- Screen: Display does not show anything
- Pod: In unlock status, control pod malfunctioned - contact Member Care for assistance.
- Heat plate will not heat up until error is solved
Machine and Pod Error
- Handle LED: OFF
- Temperature Icon: OFF
- Timer Icon: OFF
- Lock Icon: OFF
- Screen: “Err or” symbols will show up on display and keep flashing until the error is solved.
- Pod and Machine: Both control pod and machine malfunctioned - contact Member Care for assistance.
- Heat plate will not heat up until error is solved.

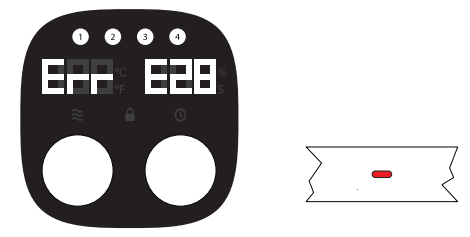

Detects a Specific Error
- Handle LED: Flashing RED
- Temperature Icon: OFF
- Timer Icon: OFF
- Lock Icon: OFF
- Screen: “Err E” followed by the error code show up on the display and keep flashing for 15 seconds.
- Pod: Contact Member Care for assistance.
- Machine: Heat plate will not heat up until error is solved
- Machine will auto-off
On – Machine is Unlocked After Error
- Handle LED: Static Orange
- Temperature Icon: Static Orange
- Timer Icon: Static White
- Lock Icon: Green
- Screen: Temperature displays last temperature setting
- Solid for 1 second then changes to current temperature. Starting at the current temperature, temperature changes at 5° increments or 1° decrement. During this initial 1 second solid display, TEMP and TIMER dials are functional.
- Timer display defaults to last time setting.
- Pod: Saves the error code that happened before the machine powers off.
- Machine: Heat press begins to heat to last temperature setting.
Factory Reset
- Power LED: OFF
- Handle LED: OFF
- Temperature Icon: OFF
- Timer Icon: OFF
Note: Factory reset can only be done when the pod is plugged into the press.
- Use a paperclip to press and hold the reset button located in the pinhole on the bottom of the control pod. Pressing this for 5 seconds will activate the “FACTORY RESET” mode. You will hear a single chime letting you know this has been activated.
- Machine: After “FACTORY RESET” mode has been activated machine will shut down and then restart.
- Pod: After “FACTORY RESET” mode is activated, pod will shut down and then restart. Once the power is back on, pod is in the factory default presets settings.
